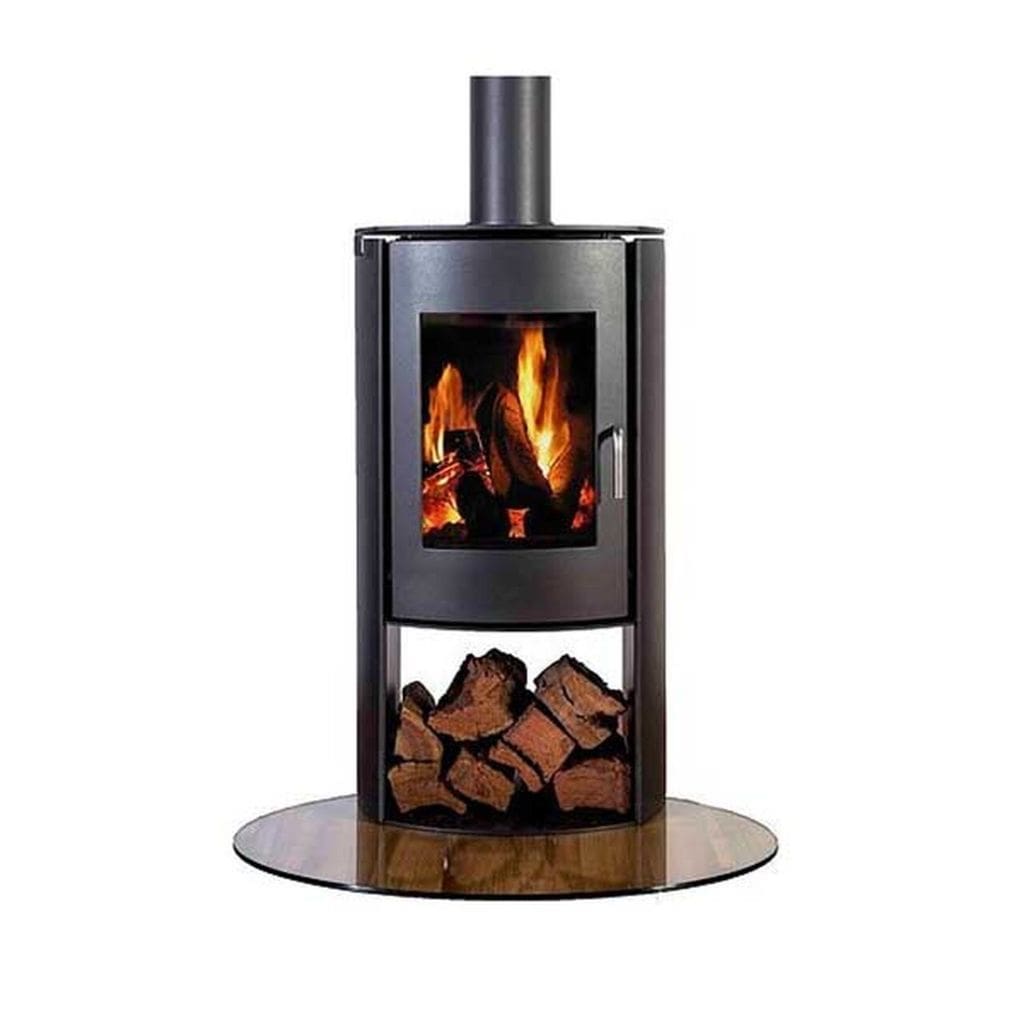

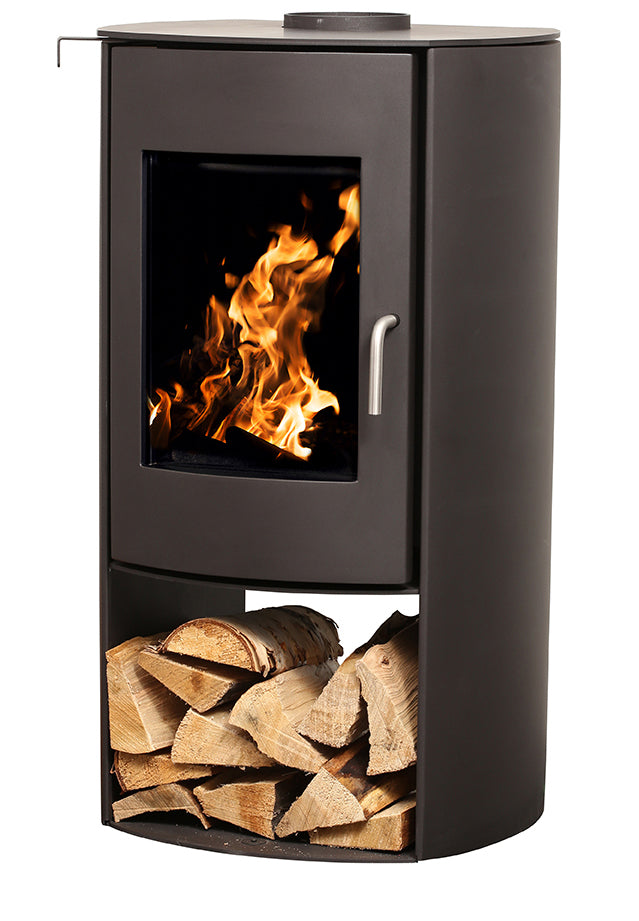

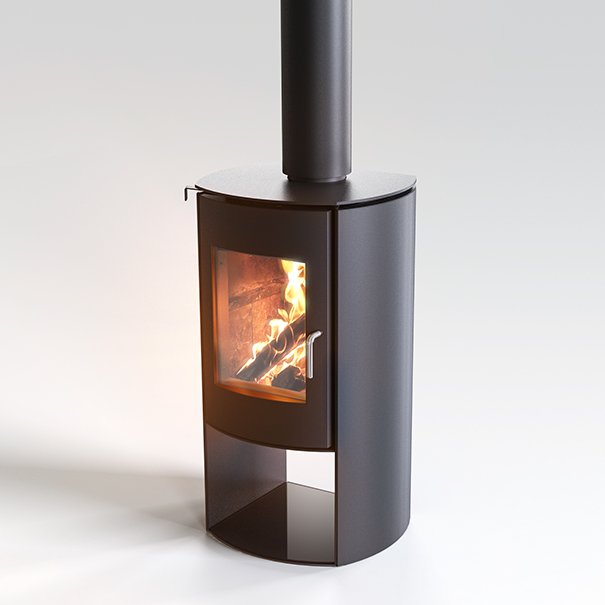

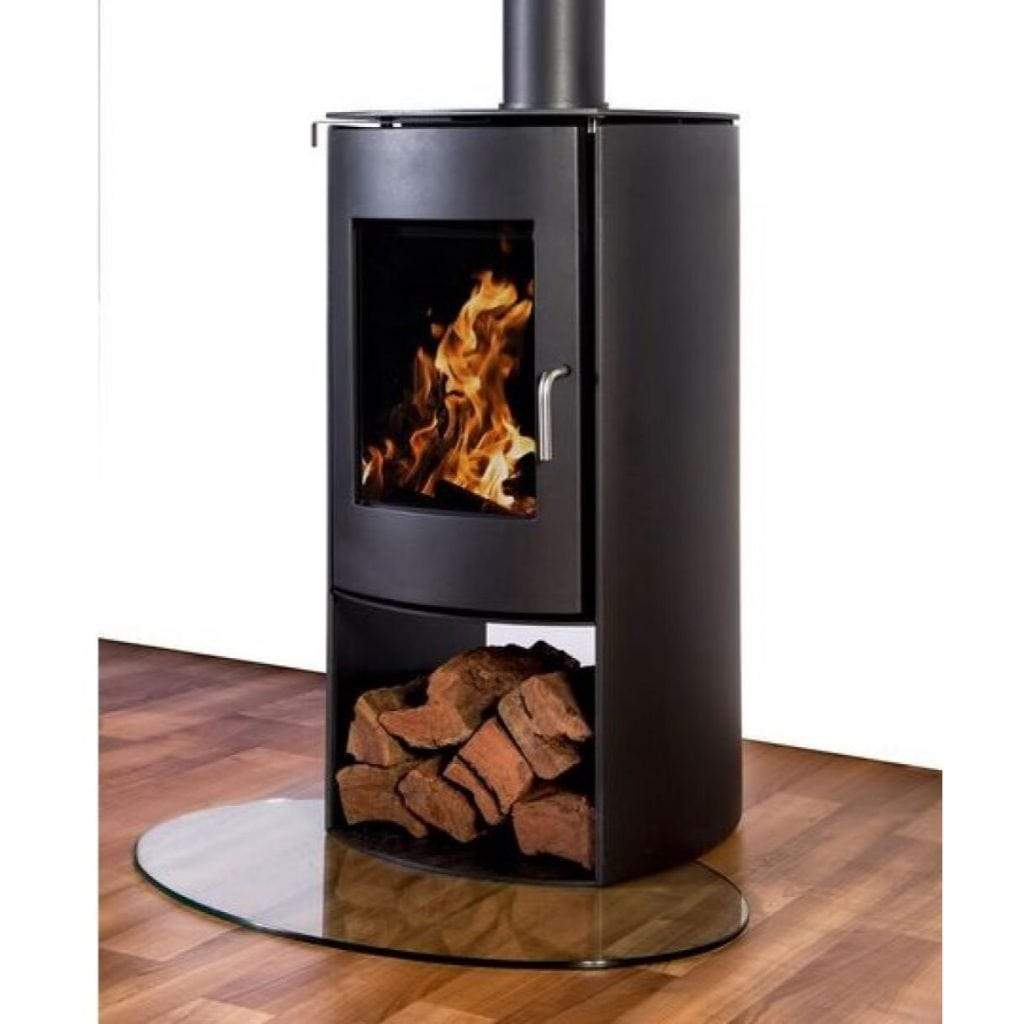

Nectre N65 Wood Burning Stove

The Nectre N65 is beautifully compact, yet powerful enough to heat 150m² of living area.
The sleek design fits beautifully in either a traditional or contemporary living area. With its tested high efficiency and low emission rating, the Nectre N65 is a welcome addition to your living space.

• Finished in black metallic paint
• Steel door with ceramic glass
• Stainless steel handle
• Steel baffle with steel brick retainer
• Vermiculite/firebrick lining to improve thermal mass

• 2 x 6.0mm steel baffle plate
• 6.0mm steel firebox with 8mm radiant top
• Steel firebrick retainer
• Concealed ash-pan
• Approved lower wood storage
• Door aperture:  305 x 380
• Firebox cubic size:  0.043m³
• Weight:  190kg

• Brand:  Nectre
• Model:  N65
• Install Type:  Freestanding
• Efficiency (%):  76
• Clean Air Approved:  YES
• Maximum Output (kW):  15
• Width (mm):  345
• Depth (mm):  275
• Height (mm):  450
• Flue Diameter (mm):  150
• Requires Hearth:  YES
• ULEB Certified:  NO

Venting Optional Accessories

Click to see DuraVent Flat Ceiling with Single Wall Pipe Chimney Kit

DuraBlack Pipe Telescoping Length With Trim - 6DBK-TL
	Use for a two-piece installation. Connects directly from stove to ceiling support box or finishing collar.
DuraTech Round Ceiling Support Box - 6DT-RCS
	Supports chimney pipe and provides a positive connection between support box and chimney with a built-in twist-lock.
DuraTech Chimney Pipe - 6DT-48
	for use with a 2100°F HT chimney system, such as wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas.
DuraTech Attic Insulation Shield - 6DT-IS
	Required for installations that pass through an attic to prevent insulation and debris from accumulating near the chimney.
DuraTech Roof Flashing - 6DT-F6
	Use to weatherproof the penetration of chimney pipe through the roof.
DuraTech Chimney Cap - 6DT-VC
	Required where pipe terminates above the roofline.
DuraTech Storm Collar - 5DT-SC
	Seal the inner edge of the collar to the chimney pipe with non-hardening 500° F high-temperature sealant.

Click to see DuraVent Cathedral Ceiling with Single Wall Pipe Chimney Kit

DuraBlack Pipe Telescoping Length With Trim - 6DBK-TL
	Use for a two-piece installation. Connects directly from stove to ceiling support box or finishing collar.
DuraBlack 12" Length Single-Wall Black Pipe - 6DBK-12
	Use for a single-wall connector pipe. Requires 18” clearance to combustibles. Subtract 1 1⁄4” from the length to calculate the installed length.
DuraTech Chimney Pipe - 6DT-48 and 6DT-24
	for use with a 2100°F HT chimney system, such as wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas.
DuraTech Roof Flashing - 6DT-F6
	Use to weatherproof the penetration of chimney pipe through the roof.
DuraTech Chimney Cap - 6DT-VC
	Required where pipe terminates above the roofline.
DuraTech 24" Square Ceiling Support Box - 6DT-CS24
	Supports chimney pipe and provides a positive connection between support box and chimney with a built-in twist lock. Suitable for both flat and cathedral (A-Frame) ceiling applications.
DuraTech Storm Collar - 5DT-SC
	Seal the inner edge of the collar to the chimney pipe with non-hardening 500° F high-temperature sealant.

Click to see DuraVent Cathedral Ceiling with Double Wall Pipe Chimney Kit

DVL Pipe Telescoping Length - 6DVL-68TA
	Use for a two-piece installation from stove to ceiling support box or finishing collar.
DVL Double-Wall Black Pipe - 6DVL-12
	Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling).
DVL Adapter Section No Damper - 6DVL-AD
	Connects DVL pipe to the appliance flue outlet. Use as a stove adapter.
DuraTech Chimney Pipe - 6DT-48 and 6DT-24
	for use with a 2100°F HT chimney system, such as wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas.
DuraTech Roof Flashing - 6DT-F6
	Use to weatherproof the penetration of chimney pipe through the roof.
DuraTech Chimney Cap - 6DT-VC
	Required where pipe terminates above the roofline.
DuraTech 24" Square Ceiling Support Box - 6DT-CS24
	Supports chimney pipe and provides a positive connection between support box and chimney with a built-in twist lock. Suitable for both flat and cathedral (A-Frame) ceiling applications.
DuraTech Storm Collar - 5DT-SC
	Seal the inner edge of the collar to the chimney pipe with non-hardening 500° F high-temperature sealant.

Click to see DuraVent Flat Ceiling with Double Wall Pipe Chimney Kit

DVL Pipe Telescoping Length - 6DVL-68TA
	Use for a two-piece installation from stove to ceiling support box or finishing collar.
DVL Adapter Section No Damper - 6DVL-AD
	Connects DVL pipe to the appliance flue outlet. Use as a stove adapter.
DuraTech Round Ceiling Support Box - 6DT-RCS
	Supports chimney pipe and provides a positive connection between support box and chimney with a built-in twist-lock.
DuraTech Chimney Pipe - 6DT-48 (2x)
	for use with a 2100°F HT chimney system, such as wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas.
DuraTech Roof Flashing - 6DT-F6
	Use to weatherproof the penetration of chimney pipe through the roof.
DuraTech Chimney Cap - 6DT-VC
	Required where pipe terminates above the roofline.
DuraTech Attic Insulation Shield - 6DT-IS
	Required for installations that pass through an attic to prevent insulation and debris from accumulating near the chimney. Fits over Firestop Radiation Shield or a support box.
DuraTech Storm Collar - 5DT-SC
	Seal the inner edge of the collar to the chimney pipe with non-hardening 500° F high-temperature sealant.

 Downloads

• Product Brochure
• Product Installation Instructions & Specifications
