SKU:N350
Nectre N350/ N350W Wood Burning Stove/ Oven & Heater
Nectre N350/ N350W Wood Burning Stove/ Oven & Heater
Venting Options
- Free Shipping on Orders Over $300
- Same-Day Order Processing

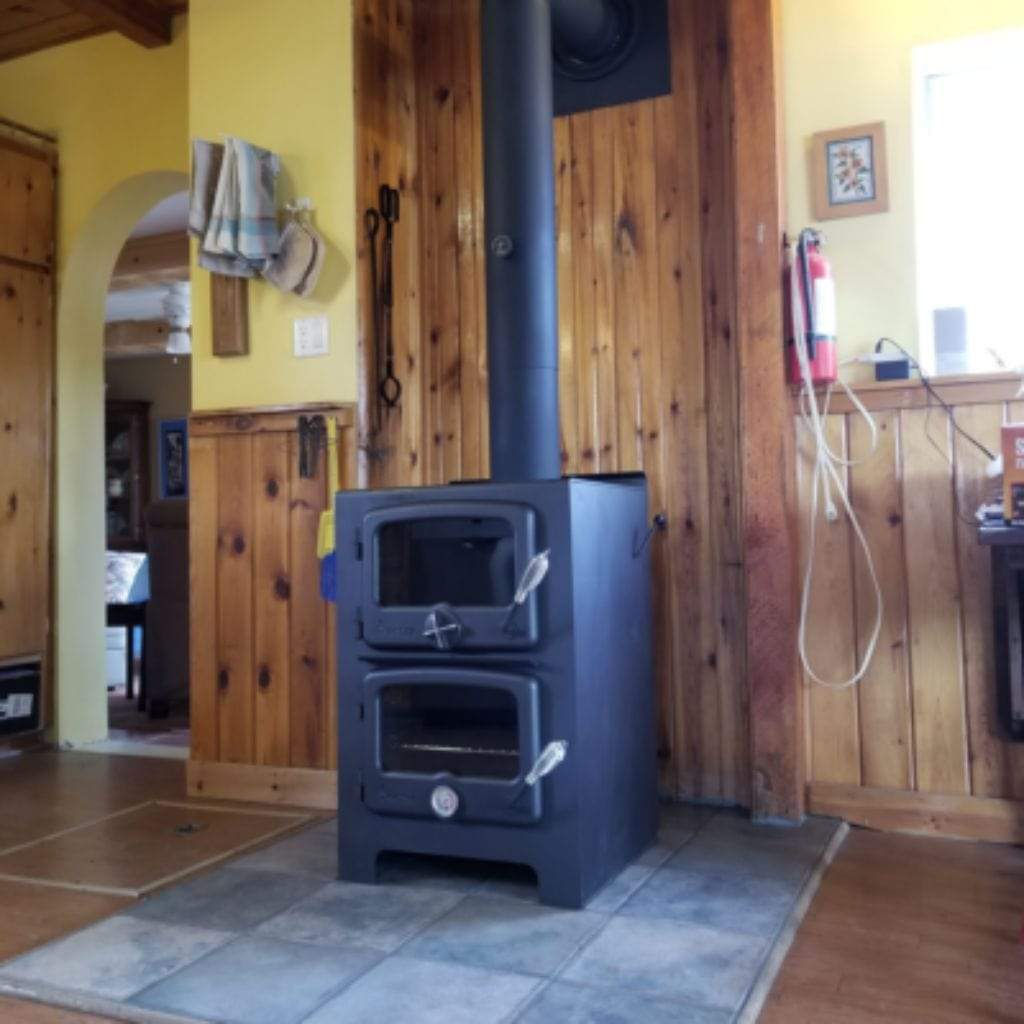

The Nectre N350 Wood Stove & Oven Is A Unique Multi Function Stove. The N350 Model Is A Wood Stove With Built In Oven & Cook Top That Can Be Used To Heat Your Home.
Radiant / Stove Heater
The Nectre Wood-fired Oven is beautifully compact but yet powerful enough to heat up to 1,000 sq. ft. of living area. With its high efficiency rating and modest heat output, the Nectre Mid Size Wood-fired Oven is a welcome addition to your home or vacation property.
The firebox body is built of 1/4" steel surrounded by a 1/8" steel outer casing to ensure efficient heat output, while the doors are made of durable and long-lasting cast iron.
The firebox itself is made of 1/4" steel, with 5/16" side sacrificial plates, hanging in position with no mechanical fixings.
Other Features
- BTU: 30,000
- Cool touch handles
- Includes two removable wire racks
- Built in Thermometer reads in Celsius & Fahrenheit
- Manufactured with long lasting steel and iron
- 10 year limited warranty
- Oven Thermometer
- Flame path around the sides, base and rear of the oven
- Ash Pan
- Glass door for the oven and firebox
- Two cook rings, five inches each
- Supplied with 2 wire cooking racks and 1 baking tray
- Cook Top: Direct radiant heat 1/4″ top plate has 2 removable cook rings
- Oven temperatures supplied with both a °F and °C thermometer
- The adjustable bypass allows for greater fire and oven temperature control by increasing/ decreasing the amount of air into the firebox
- With the flue bypass dampener closed, flue gases spill over the internal side plates of the firebox creating a convection cooking effect
- Cast iron doors and ceramic glass
Additional Features
The Nectre 350 Wood-fired Oven is finished in black metallic paint and comes with cast iron door with ceramic glass and stay cool spring handles. Steel baffle with steel brick retainer and firebrick lining to improve thermal mass.
- Installation
We recommend having a professional install any of our Nectre heaters. We can arrange installation and most cases will undertake a site inspection to determine the correct location.
- Flue and Hearths
Nectre Wood-fired Oven's are not supplied with a flue from the factory. We provide suitable a flue and or decromesh kits required for installation. Nectre heaters do not come with hearths, we can supply a suitable hearth for your requirements.
- Radiant Heat
The Nectre oven's outer skin is the firebox, which means heat radiants objects around the fire. Radiant heat is excellent if you want to sit in front while watching the flame.
Click to see Technical drawings for the N350 Wood-fired Oven
Freestanding dimensions
Top view dimensions
CORNER INSTALLATION with 90cm Flue Shield
C = 30cm, D = 35cm
F = 90cm, G = 90cm
Door aperture is 24.5cm x 34.5cm
STANDARD INSTALLATION with 90cm Flue Shield
A = 35cm, B = 12.5cm, C = 30cm
F = 90cm, G = 90cm
Door aperture is 24.5cm x 34.5cm
Click to see Flue Installation
Click to see The Interior Oven Working
Hot flue gases circulate around the oven box to provide excellent cooking temperatures to bake a loaf or succulent roast or a favourite stew. The gases are then expelled through the Flue outlet. The bypass damper allows the Oven to function as a excellent wood heater when cooking is not required.
Venting Optional Accessories
Click to see DuraVent Flat Ceiling with Single Wall Pipe Chimney Kit
DuraBlack Pipe Telescoping Length With Trim - 6DBK-TL | |
Use for a two-piece installation. Connects directly from stove to ceiling support box or finishing collar. | |
DuraTech Round Ceiling Support Box - 6DT-RCS | |
Supports chimney pipe and provides a positive connection between support box and chimney with a built-in twist-lock. | |
DuraTech Chimney Pipe - 6DT-48 | |
for use with a 2100°F HT chimney system, such as wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas. | |
DuraTech Attic Insulation Shield - 6DT-IS | |
Required for installations that pass through an attic to prevent insulation and debris from accumulating near the chimney. | |
DuraTech Roof Flashing - 6DT-F6 | |
Use to weatherproof the penetration of chimney pipe through the roof. | |
DuraTech Chimney Cap - 6DT-VC | |
Required where pipe terminates above the roofline. | |
DuraTech Storm Collar - 5DT-SC | |
Seal the inner edge of the collar to the chimney pipe with non-hardening 500° F high-temperature sealant. |
Click to see DuraVent Cathedral Ceiling with Single Wall Pipe Chimney Kit
DuraBlack Pipe Telescoping Length With Trim - 6DBK-TL | |
Use for a two-piece installation. Connects directly from stove to ceiling support box or finishing collar. | |
DuraBlack 12" Length Single-Wall Black Pipe - 6DBK-12 | |
Use for a single-wall connector pipe. Requires 18” clearance to combustibles. Subtract 1 1⁄4” from the length to calculate the installed length. | |
DuraTech Chimney Pipe - 6DT-48 and 6DT-24 | |
for use with a 2100°F HT chimney system, such as wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas. | |
DuraTech Roof Flashing - 6DT-F6 | |
Use to weatherproof the penetration of chimney pipe through the roof. | |
DuraTech Chimney Cap - 6DT-VC | |
Required where pipe terminates above the roofline. | |
DuraTech 24" Square Ceiling Support Box - 6DT-CS24 | |
Supports chimney pipe and provides a positive connection between support box and chimney with a built-in twist lock. Suitable for both flat and cathedral (A-Frame) ceiling applications. | |
DuraTech Storm Collar - 5DT-SC | |
Seal the inner edge of the collar to the chimney pipe with non-hardening 500° F high-temperature sealant. |
Click to see DuraVent Cathedral Ceiling with Double Wall Pipe Chimney Kit
DVL Pipe Telescoping Length - 6DVL-68TA | |
Use for a two-piece installation from stove to ceiling support box or finishing collar. | |
DVL Double-Wall Black Pipe - 6DVL-12 | |
Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). | |
DVL Adapter Section No Damper - 6DVL-AD | |
Connects DVL pipe to the appliance flue outlet. Use as a stove adapter. | |
DuraTech Chimney Pipe - 6DT-48 and 6DT-24 | |
for use with a 2100°F HT chimney system, such as wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas. | |
DuraTech Roof Flashing - 6DT-F6 | |
Use to weatherproof the penetration of chimney pipe through the roof. | |
DuraTech Chimney Cap - 6DT-VC | |
Required where pipe terminates above the roofline. | |
DuraTech 24" Square Ceiling Support Box - 6DT-CS24 | |
Supports chimney pipe and provides a positive connection between support box and chimney with a built-in twist lock. Suitable for both flat and cathedral (A-Frame) ceiling applications. | |
DuraTech Storm Collar - 5DT-SC | |
Seal the inner edge of the collar to the chimney pipe with non-hardening 500° F high-temperature sealant. |
Click to see DuraVent Flat Ceiling with Double Wall Pipe Chimney Kit
DVL Pipe Telescoping Length - 6DVL-68TA | |
Use for a two-piece installation from stove to ceiling support box or finishing collar. | |
DVL Adapter Section No Damper - 6DVL-AD | |
Connects DVL pipe to the appliance flue outlet. Use as a stove adapter. | |
DuraTech Round Ceiling Support Box - 6DT-RCS | |
Supports chimney pipe and provides a positive connection between support box and chimney with a built-in twist-lock. | |
DuraTech Chimney Pipe - 6DT-48 (2x) | |
for use with a 2100°F HT chimney system, such as wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas. | |
DuraTech Roof Flashing - 6DT-F6 | |
Use to weatherproof the penetration of chimney pipe through the roof. | |
DuraTech Chimney Cap - 6DT-VC | |
Required where pipe terminates above the roofline. | |
DuraTech Attic Insulation Shield - 6DT-IS | |
Required for installations that pass through an attic to prevent insulation and debris from accumulating near the chimney. Fits over Firestop Radiation Shield or a support box. | |
DuraTech Storm Collar - 5DT-SC | |
Seal the inner edge of the collar to the chimney pipe with non-hardening 500° F high-temperature sealant. |
