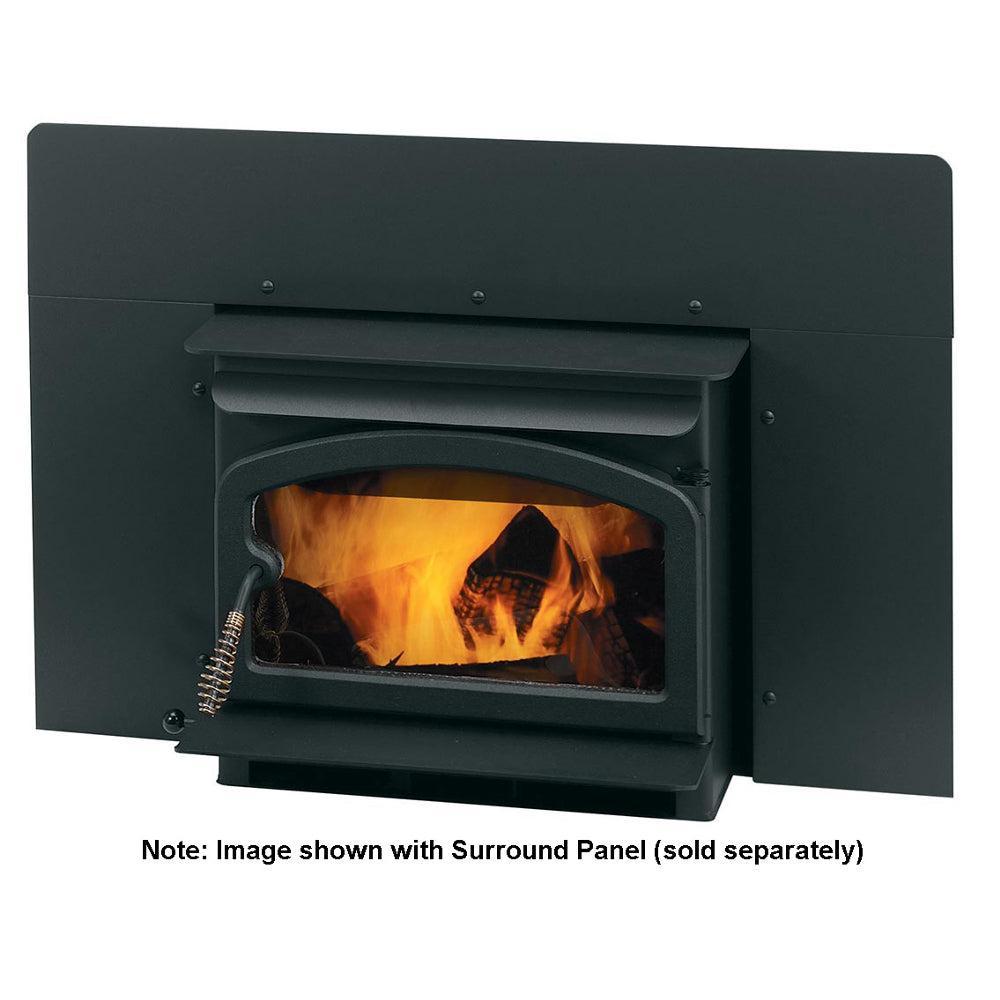

IronStrike Striker C160 Wood Burning Fireplace Insert With Arch Door
IronStrike Striker C160 Wood Burning Fireplace Insert With Arch Door
Required Accessories to Complete Unit
(Required)
Optional Accessories
Couldn't load pickup availability
- Free Shipping on Orders Over $400
- Same-Day Order Processing
Country Stoves Collection wood-burning inserts offer the ultimate in clean-burning, reliable heat to warm your home and your family. Premium-grade materials, quality craftsmanship, and sophisticated technology ensure that every Country Stoves Collection insert we make will provide you and your family a lifetime of warmth. Each insert is customizable with an array of options to fit your needs.
What's Included
- Striker C160 Wood Burning Fireplace Insert Assembly
- Arch Door
Not Included (sold separately)
- Surround Panel Required To Complete Unit
- Chimney Components
Features
- Compact 1.6 cubic foot firebox interior accepts up to 18” logs.
- 55,600 BTU’s/hour and heats up to 600 – 1,300 square feet.
- Integrated air wash system helps keep the glass clean during use for an improved view of the fire.
- Ceramic glass for extra strength and optimum heat transfer.
- Unique, integral air wash system keeps the glass clean and clear for a wide-open view of the fire.
- Precision-cut, heavy-gauge steel provides dependable, long-lasting operation.
- High-density firebrick retains heat longer, resulting in increased efficiency.
- One-touch control ensures easy operation and comfort.
- Choice of surround panels to cover the surrounding fireplace opening (1-required).
- Optional decorative door faceplates in Brushed Nickel or Nickel allow customization to your style.
- Optional 160-CFM variable-speed blower quickly moves heat from the insert into your room.
- EPA-certified and Washington State-approved for clean and efficient operation.
Specifications
| Model | C160AGL |
| Fuel Type | Wood |
| BTU | 55,600 BTUs/hr. |
| EPA | EPA Certified |
| Design Style | Country Stoves Collection |
| Heating Capacity | 600-1,300 sq. ft |
| Maximum Burn Times | 6-8 hrs. |
| Stove Pipe: Diameter Single Wall or Double Wall | 6" (152 mm) |
| Firebox | 18”W x 14”D (1.52 cu. ft.) |
| Log Length | 18” Max./16” Recommended |
| Safety Listed | PFS TECO. Listed to UL 1482, ULC S628 |
| Product Dimensions | W 23.5" x H 19.25" |
| Weight | 320 lbs. |
Technical Drawings
Clearance
* Reduced clearances may be available for A, B, C, and D dimensions by using an optional mantel and/or side shields. Consult with your Innovative Hearth Products dealer for the dimensions of the shields. Clearances can also be reduced for A, B, C and D dimensions per NFPA 211 - latest edition, Standard for Chimneys, Fireplaces, Vents, and Solid Fuel-Burning Appliances (in Canada CSA B365 - latest edition). See section on “Reduction of Appliance Clearance with Specified Forms of Protection.”
** Side view of optional mantel deflector shown.
(1)Hearth extension reductions: 2” (51mm) reduction for 2” (51mm) raised hearth. (USA) 16” minimum hearth extension on all stoves as measured from the door opening of the unit. (Canada) 18”(450mm) minimum hearth extension on all stoves as measured from the door opening of the unit. Minimum distance of floor protection to the side = 8” (200mm). This is measured from the sides of the door opening in the USA and from the sides of the insert in Canada.
(2) J = Maximum lintel depth without flue offset or smoke deflector.
Note: Facing material that projects more than 3/4” (19mm) from the wall is considered a mantel or side wall.
Minimum Fireplace Size
Warranty
Innovative Hearth Products ("IHP") Limited Lifetime Warranty warrants your IronStrike® Brand Wood Burning Stove or Insert ("Product") to be free from defects in materials and workmanship at the time of manufacture. The Product body, firebox and ceramic glass carry the Limited Lifetime Warranty. Ceramic glass carries the Limited Lifetime Warranty against thermal breakage only. After installation, if covered components manufactured by IHP are found to be defective in materials or workmanship during the Limited Lifetime Warranty period and while the Product remains at the site of the original installation, IHP will, at its option, repair or replace the covered components. If repair or replacement is not commercially practical, IHP will, at its option, refund the purchase price or wholesale price of the IHP product, whichever is applicable. IHP will also pay IHP prevailing labor rates, as determined in its sole discretion, incurred in repairing or replacing such components for up to five years. THERE ARE EXCLUSIONS AND LIMITATIONS to this Limited Lifetime Warranty as described herein.
Coverge Commencement Date: Warranty coverage begins on the date of purchase. In the case of new home construction, warranty coverage begins on the date of first occupancy of the dwelling or six months after the sale of the Product by an independent IHP dealer/distributor, whichever occurs earlier. The warranty shall commence no later than 24 months following the date of product shipment from IHP, regardless of the installation or occupancy date.
Click to see Exclusions and Limitations
This Limited Lifetime Warranty applies only if the Product is installed in the United States or Canada and only if operated and maintained in accordance with the printed instructions accompanying the Product and in compliance with all applicable installation and building codes and good trade practices.
This warranty is non-transferable and extends to the original owner only. The Product must be purchased through a listed supplier of IHP and proof of purchase must be provided. The Product body and firebox carry the Limited Lifetime Warranty from the date of installation. Vent components, trim components and paint are excluded from this Limited Lifetime Warranty. The following do not carry a Limited Lifetime Warranty but are warranted as follows:
- Cast Iron Heat Exchanger – Replacement for five years from the date of installation
- Cast iron parts – Replacement for one year from the date of installation
- Catalyst – Carries a separate warranty. Refer to the warranty certificate provided for that part
- Electrical components – Repair or replacement for one year from date of installation
- Gaskets – Replacement for one year from the date of installation
- Gold & nickel plating – Replacement for two years from date of installation. Excludes tarnishing
- Refractory & screens – Replacement for two years from date of installation. Excludes hairline cracks
- Removable air tubes – Repair or replacement for seven years from date of installation. IHP prevailing labor rates for years one through five
- Labor coverage – Prevailing IHP labor rates apply for the warranty period of the component, unless otherwise noted
Parts not otherwise listed carry a 90 day warranty from the date of installation.
Whenever practicable, IHP will provide replacement parts, if available, for a period of 10 years from the last date of manufacture of the Product.
IHP will not be responsible for:
- Damages caused by normal wear and tear, accident, riot, fire, flood or acts of God
- Damages caused by abuse, negligence, misuse, or unauthorized alteration or repair of the Product affecting its stability or performance
- Damages caused by failing to provide proper maintenance and service in accordance with the instructions provided with the Product
- Damages, repairs or inefficiency resulting from faulty installation or application of the Product
The Product must be subject to normal use with approved fuels listed in the Operation Manual. Fuel with abnormal burning characteristics (e.g., driftwood, coal, plywood, or wood with binders) may burn at excessive temperatures and cause damage.
Coverage of this Limited Lifetime Warranty is conditional upon the appliance being operated without the use of grates, irons, or any other method to elevate the fire.
IHP is not responsible for inadequate system draft caused by air conditioning, heating systems, mechanical ventilation, or construction conditions generating negative air pressure. IHP also assumes no responsibility for smoking conditions due to chimney height, trees, buildings, wind conditions, or unusual environmental factors.
Certain IHP Products are listed for use only with Security Chimneys International, Ltd. chimney systems. Use of other chimney components will void the warranty.
Limitation on Liability
It is expressly agreed that IHP’s sole obligation and the purchaser’s exclusive remedy under this warranty shall be limited to replacement, repair, or refund.
In no event shall IHP be liable for any incidental or consequential damages caused by defects, whether before or after repair/replacement, and regardless of negligence.
IHP makes no warranty of fitness for a particular purpose. Implied warranties are limited to the duration of this expressed warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply.
Investigation of Claims
IHP reserves the right to investigate any claims under this warranty and to decide, in its sole discretion, the method of settlement.
To receive benefits, the appliance must be installed and repaired by a licensed contractor approved by IHP. IHP shall not be responsible for work done by an unapproved contractor without prior written consent.
How to Register a Claim
To make a claim:
- Contact the IHP dealer/distributor from which you purchased the product.
- If the dealer/distributor cannot be located, notify IHP in writing within 90 days of the defect.
