• Invicta Kazan 26" Cast Iron Wood Burning Stove
  • Invicta Kazan 26" Cast Iron Wood Burning Stove
1 2

6104-44

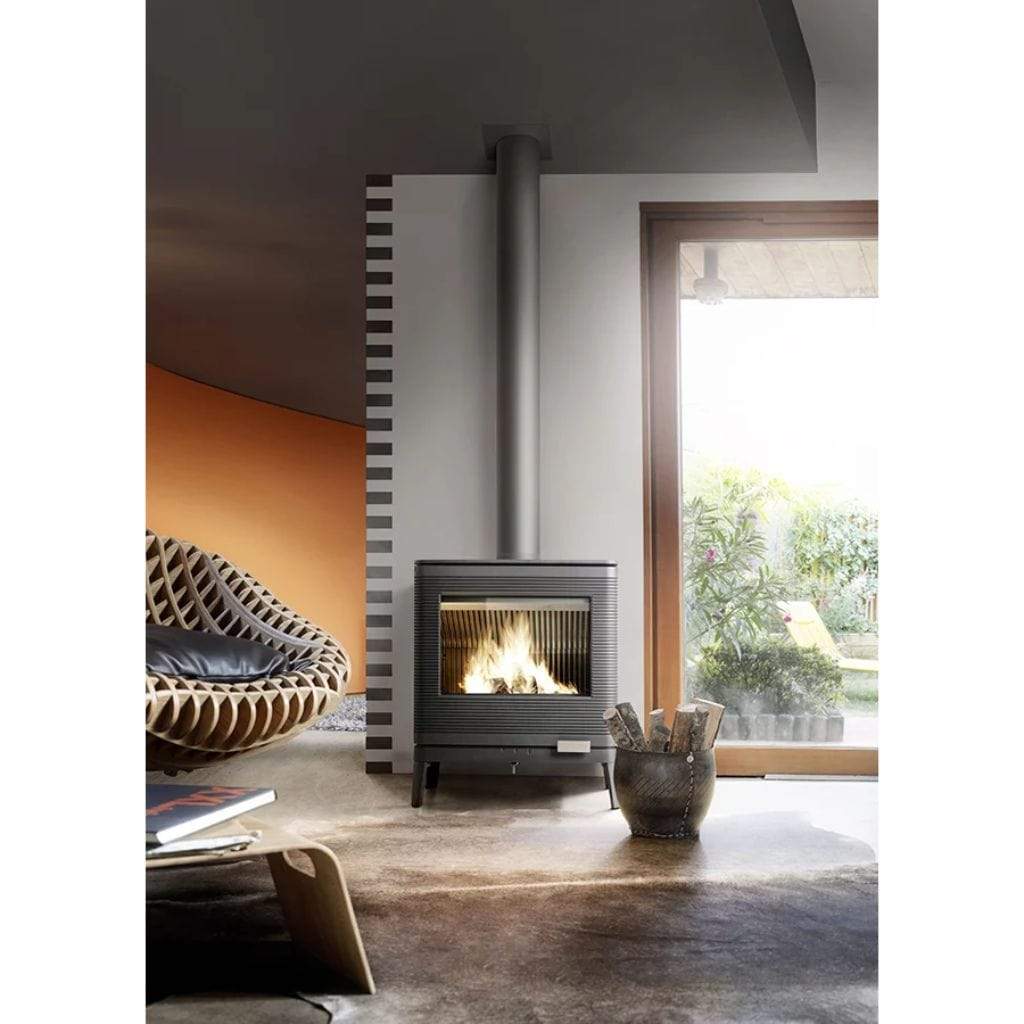

Invicta Kazan 26" Cast Iron Wood Burning Stove

Invicta Kazan 26" Cast Iron Wood Burning Stove

$4,569.00
$4,569.00
Sale Sold out
Shipping calculated at checkout.

Invicta Rear Heat Shield

-- Please Select --

Add Rear Heat Shield

No, Thank You

Venting Options
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing

Kazan 26" Cast Iron Stoves

Kazan is a stylish and high-performance stove inspired by the heat efficiency of cast iron radiators. Its fins provide it with a unique and elegant look, all the while improving its energy efficiency by way of an extended heat transfer surface.

Zen attitude…Kazan breathes harmony and serenity to your home. Feel all the positive energy that emerges from this well-proportioned stove.

The stylish Kazan fireplace combines modern design and great performance. Manufactured in France by Invicta, the Kazan will deliver up to 42,000 BTUs of heat. Feel all the energy and warmth that emerges from this beautiful, woodburning stove.

Features

OPTIMAL POWER
  9 kW
POWER MODULATION
6 to 13.5 kW
HEAT VOLUME
125 to 275 m³
HEATING SURFACE
50 to 110 m²
GREEN FLAME
  7 stars
EFFICIENCY
  76%
CO RATE
0,08 %
CONCENTRATION OF POWDERS
28 mg/Nm³
PERFORMANCE INDEX
 0.5
COMBUSTILE
Logs 25, Logs 33, Logs 50 cm
MAXIMUM LENGTH OF THE LOGS (HORIZONTALLY)
58 cm
LOAD
 Front
SMOKE EXHAUST
Top or Back
DIAMETER OF NOZZLE
150 mm
DIMENSIONS
H 768 x W 652 x D 372 mm
WEIGHT
157 kg
DESIGN
  Contemporain
MATTER
  Cast Iron
COMPLETION
  Anthracite
CERTIFICATION
 EN 13240 – BImSchV2
GUARANTEE
  5 years



Why this product?

8 hour extended burning

The unit can operate in slow combustion mode for 8 hours without adding more fuel or other external intervention. There will be a bed of embers after this period. This is enough to reload the unit with fuel to relight it.

Adjustable secondary air

    Secondary air protects the glass against smoke and soot deposits. It ensures combustion of volatile materials. The adjustable secondary air flow can adapt the unit’s operation to high draft conditions.

    Clean glass

      The clean glass system slows deposit buildup on the glass. An air supply above the glass creates a protective curtain. The preheated air is propelled along the glass. It triggers combustion of gas and volatile materials, thereby protecting the glass against smoke and soot deposits.

      Origine France Garantie (Made in France Guarantee)

      The Origine France Garantie is the only certification that certifies a product was manufactured in France. This labeling is validated by an independent organization, after an audit. (Bureau Veritas No.7208672). OFG products are manufactured in France at Invicta Group manufacturing sites.

      Post-combustion system

        Injection of pre-heated air into the combustion chamber The supplementary air intake in the back enables hydrocarbons to be destroyed at a high temperature. Complete combustion reduces pollution.

        Technical Elevations

        Optional Accessories

        Rear Heat Shield

          • Color: Charcoal
          • Optional accessory
          • Manufactured from heat-resistant material
          • For use with the Invicta Kazan cast iron wood stove
          • Protects against excessive heat produced by wood stoves
          • Supplies an additional layer of safety during the operation of hearth appliances


          Please Note: Do not connect the stove to any hot air distribution system

          Also Note: This appliance must be installed on a non-combustible protector that extends to the front, sides, and back of the appliance.

          Click to see venting products


          venting products

          4" Length DuraBlack Stovetop Adapter - 6DBK-AD
          Use to adapt DuraBlack stovepipe to appliance flue outlets.
          DuraBlack 6" Diameter Telescoping Length With Trim - 6DBK-TL
          Use for a two-piece installation. Connects directly from stove to ceiling support box or finishing collar.
          12" Length DuraBlack Single-Wall Black Pipe - 6DBK-12
          Use for a single-wall connector pipe. Requires 18” clearance to combustibles. Subtract 1 1⁄4” from length to calculate the installed length.
          24" Length DuraBlack Single-Wall Black Pipe - 6DBK-24
          Use for a single-wall connector pipe. Requires 18” clearance to combustibles. Subtract 1 1⁄4” from length to calculate the installed length.
          48" Length DuraBlack Single-Wall Black Pipe - 6DBK-48
          Use for a single-wall connector pipe. Requires 18” clearance to combustibles. Subtract 1 1⁄4” from length to calculate the installed length.
          DuraBlack Slip Connector With Trim - 6DBK-SC
          Used to adapt DuraBlack pipe to 6” - 8” Ceiling Support Box, including DuraTech, and DuraPlus. The Slip connector can also be added to 6” - 8” DuraTech finishing collar.
          45-Degree DuraBlack Elbow - 6DBK-E45
          Offsets obstructions as needed. Elbows angles are now adjustable. Adjustable elbows are manufactured drip-free so creosote travels back to the stove as intended.
          90-Degree DuraBlack Elbow - 6DBK-E90
          Offset obstructions as needed or to orient the stovepipe horizontally through the wall installation. Adjustable elbows are manufactured drip-free so creosote travels back to the stove as intended.
          DVL Double-Wall Black Stovepipe Adapter - 6DVL-AD
          Connects DVL pipe to the appliance flue outlet. Use as a stove adapter.
          6" DVL Double-Wall Adjustable Black Stovepipe - 6DVL-6ADJ
          8” clearance to ceilings, including cathedral ceilings. Use to add length to DVL pipe. 6” pipe adds 2”-5” of length.
          29"-46" DVL Double-Wall Black Stovepipe Telescoping Length - 6DVL-46TA
          Use for a two-piece installation from stove to ceiling support box or finishing collar. No cutting is required.
          40"-68" DVL Double-Wall Black Stovepipe Telescoping Length - 6DVL-68TA
          Use for a two-piece installation from stove to ceiling support box or finishing collar. No cutting is required.
          6" DVL Double-Wall Black Stovepipe - 6DVL-06
          Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
          12" DVL Double-Wall Black Stovepipe - 6DVL-12
          Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
          18" DVL Double-Wall Black Stovepipe - 6DVL-18
          Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
          24" DVL Double-Wall Black Stovepipe - 6DVL-24
          Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
          48" DVL Double-Wall Black Stovepipe - 6DVL-48
          Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
          45-Degree DVL Double-Wall Black Elbow - 6DVL-E45
          8” clearance to ceilings, including cathedral ceilings. Offsets obstructions as needed. Elbows angles are adjustable.
          90-Degree DVL Double-Wall Black Elbow - 6DVL-E90
          Offsets obstructions as needed. Elbows angles are adjustable. Not recommended for rear exit appliances.
          DVL/DuraBlack Chimney Adapter With Trim - 6DVL-ADT
          Use to connect from double-wall DVL to DuraTech, DuraPlus, and DuraLiner for a through-the-wall or ceiling support installation. Provides a strong mechanical connection.
          DBK-DS DuraBlack Damper Section - 6DBK-DS
          Install at, or close to, the stove outlet in-line. 5” pipe section with the damper pre-installed.
          6"-8" DuraBlack Slip Increaser With Trim - 6DBK-XS8
          Use to adapt from 6” DuraBlack to 8” DuraTech, DuraPlus, or DuraLiner at the ceiling support box or finishing collar. Adds 5" - 15" of length.
          DBK-TC DuraBlack Trim Collar - 6DBK-TC
          Use as a decorative Trim Collar for DuraBlack connection to the chimney.
          DVL Double-Wall Black Adapter/Damper Section - 6DVL-ADWD
          8” clearance to ceilings, including cathedral ceilings. Connects DVL pipe to the appliance flue outlet. Use as a stove adapter.
          DVL Double-Wall Black Stovepipe Increaser - 6DVL-X8
          Use to increase from a smaller appliance flue outlet to a larger diameter chimney or stovepipe.

          Downloads

          Invicta Kazan Stove Catalog

          Invicta Kazan Stove Installation

          Invicta Kazan Stove Owners Manual

          Invicta Kazan Stove Technical Specification

          Invicta Kazan Stove Brochure

          Invicta Kazan Stove Comparison Chart

          View full details
