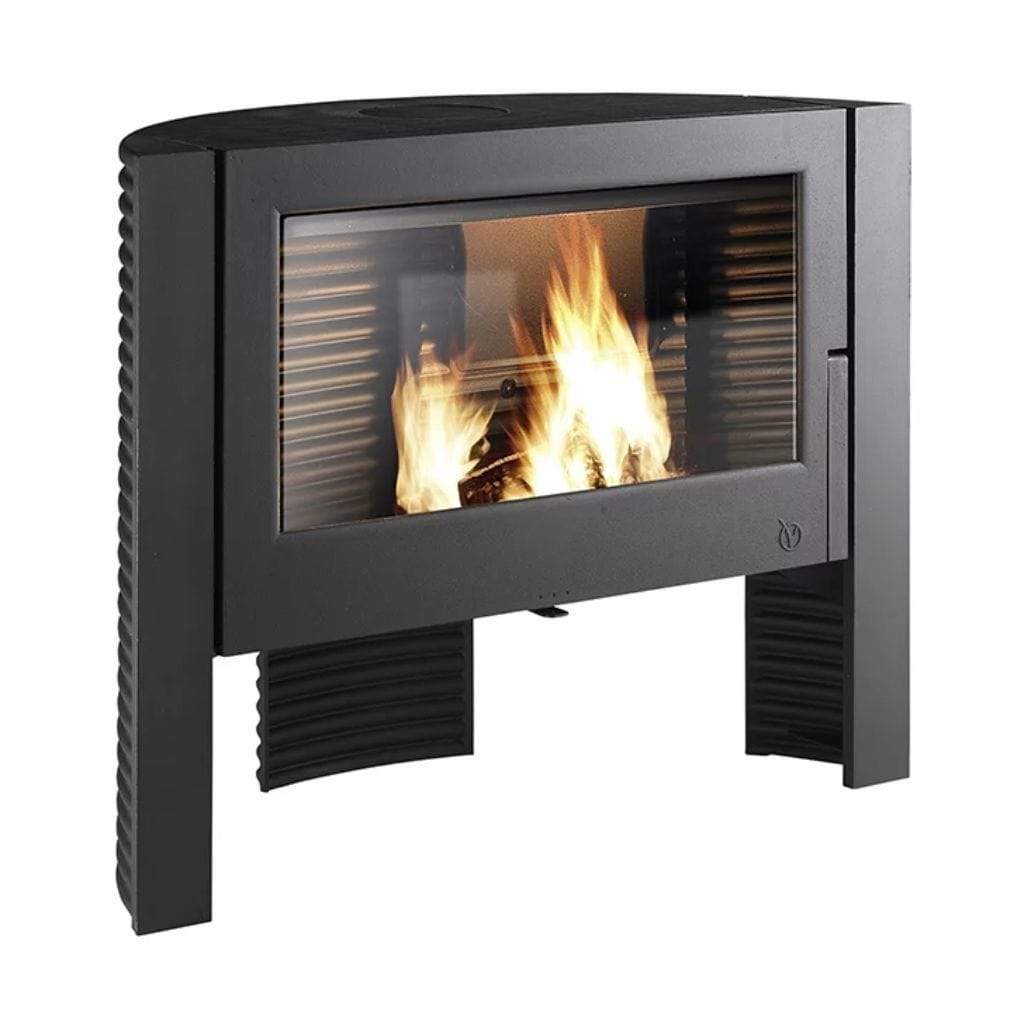

Invicta Itaya 41" Cast Iron Wood Burning Stove

Invicta Itaya 41" Cast Iron Wood Burning Stove

Regular price $5,299.00
Regular price Sale price $5,299.00
Sale Sold out
Shipping calculated at checkout.

Wall Protection Rear Stove Shield

-- Please Select --

Add Rear Stove Shield

No, Thank You

8-Inch Flue Adaptor

-- Please Select --

Add Flue Adaptor

No, Thank You

Venting Options

  • Free Shipping on Orders Over $300
  • Same-Day Order Processing

Itaya 41" Cast Iron Stoves

Sophisticated and unique, our Itaya cast iron stove provides a touch of exquisite warmth to any interior.

Exceptional design, the chimney-stove ITAYA, creates a unique and warm atmosphere in your home.

Invicta designers have thought about the form and function of every piece of the Itaya Wood Burning stove. The large fire chamber allows for logs up to 71cm in length and a baffle system which is designed to swirl the gases in the fire to give a captivating flame display. At 12kW the Itaya is a stove suited to the larger room and can hold logs of 71cm.

The Itaya features a subtle air wash system which keeps the large viewing window in this magnificent log burner crystal clear. The air introduced by the clear pane air wash system acts as a secondary air system and increases the efficiency of the appliance by ensuring a more complete combustion of gases within the stove. This also reduces smoke emissions.

The Invicta Itaya is made of cast iron and the well designed yet obstructive legs raise the large firebox well off the ground.The Itaya Wood Burning EPA Stove features a firebox and baffle system designed to swirl the flames and give a captivating display. Made by stove manufacturer Invicta in France.

Features

OPTIMAL POWER
 12 kW
POWER MODULATION
 8 to 18 kW
HEAT VOLUME
 160 - 360 m³
HEATING SURFACE
 65 to 145 m²
GREEN FLAME
 7 stars
EFFICIENCY
 77%
CO RATE
 0.1%
CONCENTRATION OF POWDERS
30 mg/Nm³
PERFORMANCE INDEX
 0.7
COMBUSTILE
 Logs 25, Logs 33, Logs 50 cm
MAXIMUM LENGTH OF THE LOGS (HORIZONTALLY)
71 cm
LOAD
Front
SMOKE EXHAUST
 Top
DIAMETER OF NOZZLE
 180 mm
DIMENSIONS
H 815 x W 1051 x D 431 mm
WEIGHT
187 kg
DESIGN
 Contemporain
MATTER
 Cast Iron
COMPLETION
 Anthracite
CERTIFICATION
EN 13240
GUARANTEE
 5 years



Why this product?

8 hour extended burning

The unit can operate in slow combustion mode for 8 hours without adding more fuel or other external intervention. There will be a bed of embers after this period. This is enough to reload the unit with fuel to relight it.

Adjustable secondary air

    Secondary air protects the glass against smoke and soot deposits. It ensures combustion of volatile materials. The adjustable secondary air flow can adapt the unit’s operation to high draft conditions.

    Clean glass

      The clean glass system slows deposit buildup on the glass. An air supply above the glass creates a protective curtain. The preheated air is propelled along the glass. It triggers combustion of gas and volatile materials, thereby protecting the glass against smoke and soot deposits.

      Origine France Garantie (Made in France Guarantee)

      The Origine France Garantie is the only certification that certifies a product was manufactured in France. This labeling is validated by an independent organization, after an audit. (Bureau Veritas No.7208672). OFG products are manufactured in France at Invicta Group manufacturing sites.

      Post-combustion system

        Injection of pre-heated air into the combustion chamber The supplementary air intake in the back enables hydrocarbons to be destroyed at a high temperature. Complete combustion reduces pollution.

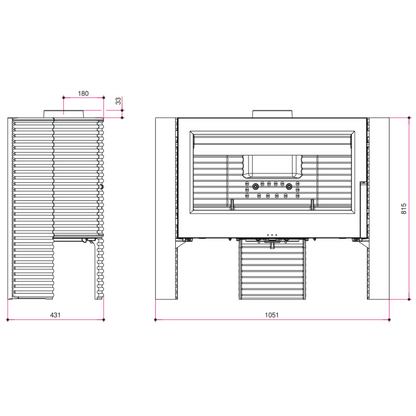

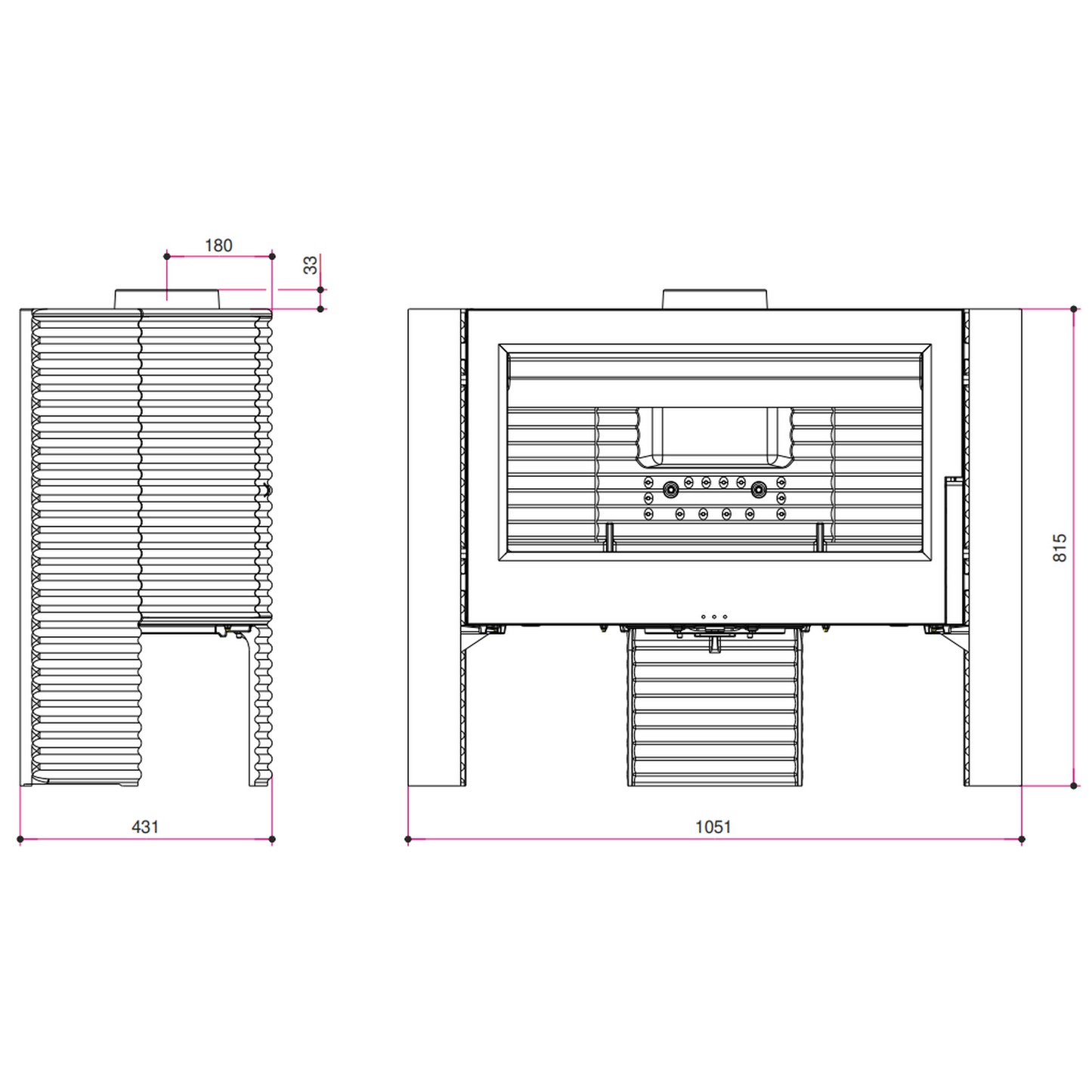

        Technical Elevations

        Optional Accessories

        Stove Shields

          Cold rolled steel panel. High temperature anthracite epoxy paint coating. Sometimes you just can't make it work with the clearances required of your wood stove. That's where this Invicta rear heat shield comes in. This shield provides and extra layer to safety during the use of your appliance.



          Flue Adaptor

          Flue adaptor give you the best venting system possible to get that smoke safely out of your home Invicta makes this 8 inch flue adaptor. This attaches to the flue collar of your Invicta stove and adapts the size of the collar to the stovepipe. Keep your home safe and smoke free.


          Please Note: Do not connect the stove to any hot air distribution system

          Also Note: This appliance must be installed on a non-combustible protector that extends to the front, sides, and back of the appliance.

          Click to see venting products


          venting products

          4" Length DuraBlack Stovetop Adapter - 7DBK-AD
          Use to adapt DuraBlack stovepipe to appliance flue outlets.
          12" Length DuraBlack Single-Wall Black Pipe - 7DBK-12
          Use for a single-wall connector pipe. Requires 18” clearance to combustibles. Subtract 1 1⁄4” from length to calculate the installed length.
          24" Length DuraBlack Single-Wall Black Pipe - 7DBK-24
          Use for a single-wall connector pipe. Requires 18” clearance to combustibles. Subtract 1 1⁄4” from length to calculate the installed length.
          48" Length DuraBlack Single-Wall Black Pipe - 7DBK-48
          Use for a single-wall connector pipe. Requires 18” clearance to combustibles. Subtract 1 1⁄4” from length to calculate the installed length.
          DuraBlack Slip Connector With Trim - 7DBK-SC
          Used to adapt DuraBlack pipe to 6” - 8” Ceiling Support Box, including DuraTech, and DuraPlus. The Slip connector can also be added to 6” - 8” DuraTech finishing collar.
          45-Degree DuraBlack Elbow - 7DBK-E45
          Offsets obstructions as needed. Elbows angles are now adjustable. Adjustable elbows are manufactured drip-free so creosote travels back to the stove as intended.
          90-Degree DuraBlack Elbow - 7DBK-E90
          Offset obstructions as needed or to orient the stovepipe horizontally through the wall installation. Adjustable elbows are manufactured drip-free so creosote travels back to the stove as intended.
          DVL Double-Wall Black Stovepipe Adapter - 7DVL-AD
          Connects DVL pipe to the appliance flue outlet. Use as a stove adapter.
          6" DVL Double-Wall Adjustable Black Stovepipe - 7DVL-6ADJ
          8” clearance to ceilings, including cathedral ceilings. Use to add length to DVL pipe. 6” pipe adds 2”-5” of length.
          29"-46" DVL Double-Wall Black Stovepipe Telescoping Length - 7DVL-46TA
          Use for a two-piece installation from stove to ceiling support box or finishing collar. No cutting is required.
          40"-68" DVL Double-Wall Black Stovepipe Telescoping Length - 7DVL-68TA
          Use for a two-piece installation from stove to ceiling support box or finishing collar. No cutting is required.
          6" DVL Double-Wall Black Stovepipe - 7DVL-06
          Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
          12" DVL Double-Wall Black Stovepipe - 7DVL-12
          Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
          18" DVL Double-Wall Black Stovepipe - 7DVL-18
          Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
          24" DVL Double-Wall Black Stovepipe - 7DVL-24
          Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
          48" DVL Double-Wall Black Stovepipe - 7DVL-48
          Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
          45-Degree DVL Double-Wall Black Elbow - 7DVL-E45
          8” clearance to ceilings, including cathedral ceilings. Offsets obstructions as needed. Elbows angles are adjustable.
          90-Degree DVL Double-Wall Black Elbow - 7DVL-E90
          Offsets obstructions as needed. Elbows angles are adjustable. Not recommended for rear exit appliances.
          DVL/DuraBlack Chimney Adapter With Trim - 7DVL-ADT
          Use to connect from double-wall DVL to DuraTech, DuraPlus, and DuraLiner for a through-the-wall or ceiling support installation. Provides a strong mechanical connection.
          DBK-DS DuraBlack Damper Section - 7DBK-DS
          Install at, or close to, the stove outlet in-line. 5” pipe section with the damper pre-installed.
          DVL Double-Wall Black Adapter/Damper Section - 7DVL-ADWD
          8” clearance to ceilings, including cathedral ceilings. Connects DVL pipe to the appliance flue outlet. Use as a stove adapter.
          12" DVL Double-Wall Adjustable Black Stovepipe - 7DVL-12ADJ
          Use to add length to DVL pipe. 12” pipe adds 2”-11” of length when used with rigid sections of pipe.
          DBK-TC DuraBlack Trim Collar - 7DBK-TC
          Use as a decorative Trim Collar for DuraBlack connection to the chimney.
          DVL/DuraBlack Chimney Adapter - 7DVL-ADC
          Use to connect from double-wall DVL and/or single-wall DuraBlack to DuraTech, DuraPlus, and DuraLiner for a through-the-wall or ceiling support installation.

          Downloads

          Invicta Itaya stove Catalog

          Invicta Itaya stove Installation And Owners Manual

          Invicta Itaya stove Technical Specification

          Invicta Itaya stove Brochure

          Invicta Itaya stove Comparison Chart
