SKU:303.0300.0000

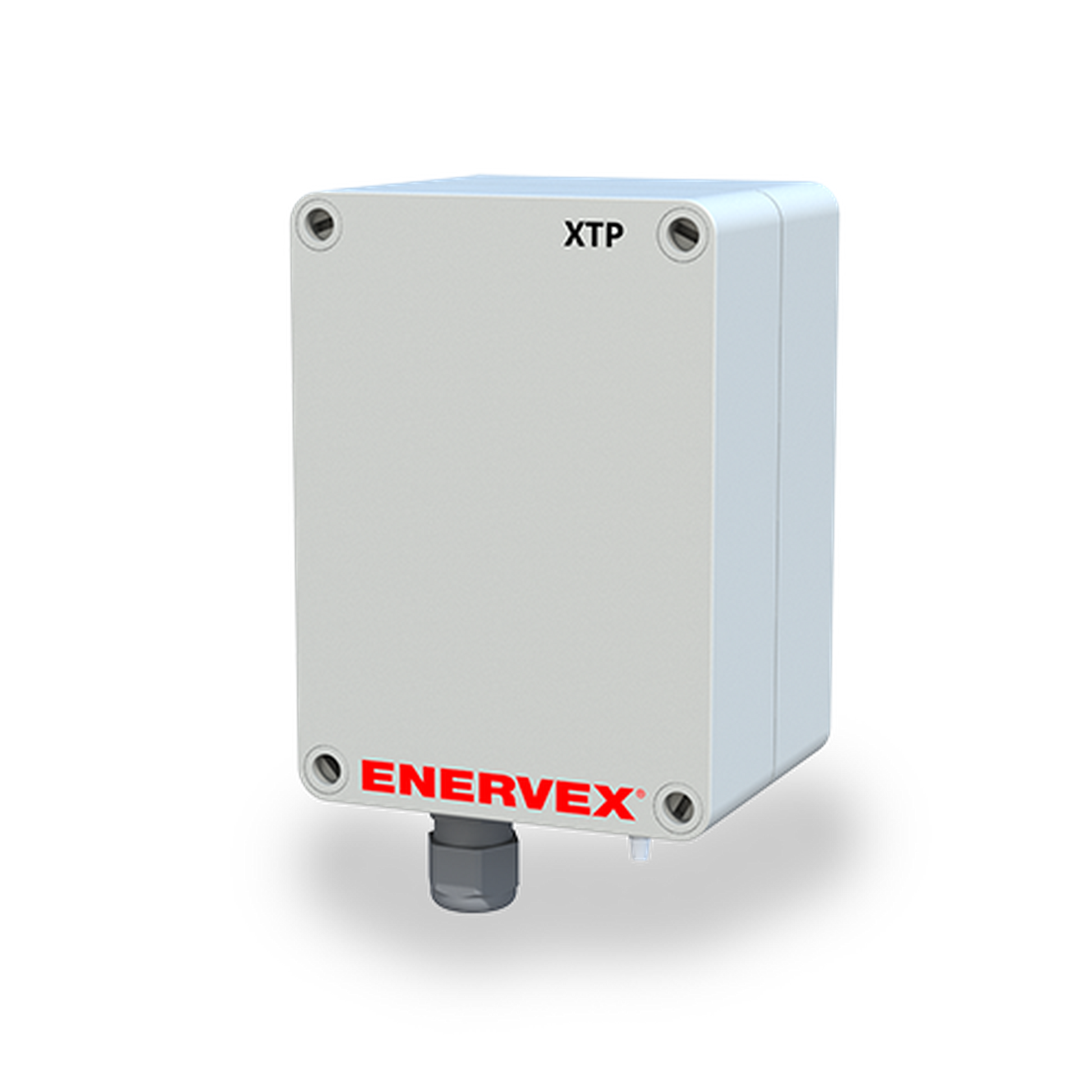

Enervex XTP2 Differential Pressure Sensor
Enervex XTP2 Differential Pressure Sensor
Regular price
$874.00
Regular price
$0.00
Sale price
$874.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
The XTP Differential Pressure Sensor is an external pressure transducer that monitors pressure and sends a signal to the corresponding fan control.
The transducer converts measured pressure into a corresponding voltage, which is then relayed to the control to modulate the damper position and/or fan speed — thus regulating pressure at the set-point.
The transmitter uses a patented Si-Glas™ variable capacitance sensor. This MEMS sensor provides extraordinary sensitivity and long term stability. New digital compensation is accomplished using a highly reliable application specific integrated circuit (ASIC).
Features
- Extremely durable
- Compact design
- NEMA 1 (IP20) enclosure
- CE marked
- RoHS Compliant
Specifications
| Model Number | XTP2 |
| Item Number | 303.0300.0000 |
| Power Supply (VDC) | 12-36 |
| Amperage (mA) | <20 |
| Output (VDC) | 0-10 |
| Operating Temperature (°F/°C) | 0 to 160 / -18 to 71 |
| Range of Operation (inWC/Pa) | 0-0.6/0-150 |
| Accuracy (inWC/Pa) | +/- 0.08% |
| Weight (lbs/kg) | .6/ .3 |
Technical Drawings & Dimensions
Dimensions (in/mm)
| D | 3.70/94 |
| E | 5.12/130 |
| F | 6.18/157 |
Warranty
 |
2-Year Factory Warranty |
