• Enervex RSHT 016 Chimney Fans
1 1

102.0899.1200

Enervex RSHT 016 Chimney Fans

Enervex RSHT 016 Chimney Fans

$6,292.00
$6,532.00 $6,292.00
Sale Sold out
Shipping calculated at checkout.
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
“I’ve been in the hearth industry a long time, so I know a lot about poorly-performing chimneys. An ENERVEX Chimney Fan is the best way I know to prevent soot and smoke from coming into a house. I tell my customers that if they want a maintenance-free, problem-free way to stop smoking fireplaces – and save on fuel costs – they need to install an ENERVEX Chimney Fan.” - Former chimney sweep

The Guaranteed Solution to Smoking Fireplaces. Optimize Your Fireplace and Create the Perfect Draft!

The perfect fireplace features a flame that’s just the right size – not too high or too low and that doesn’t allow smoke to escape from the firebox. Today’s energy-efficient homes are designed to keep airflow in the house to a minimum, which saves energy but makes it difficult to create a good draft. A fireplace that doesn’t get a good draft spills smoke, soot, and ash into the house, creating a mess and an unpleasant environment. Regardless of the airflow in your house, an ENERVEX Chimney Fan provides a reliable draft in your chimney – all the time. And you’ll never even notice that it’s there.

Tired of smoke getting into your eyes? The RSHT is the cure. It will literally suck the smoke out from the chimney flue  This high-temperature exhaust fan is typically used in venting solid-fuel fireplaces, BBQs, pizza ovens, and stoves. Installation is clean and easy - and the fan's compact design is barely visible from the ground level. The fan can be recessed or hidden behind the chimney top enclosure.

The RSHT Fan is specifically designed for applications where efficient operation, low noise level, low energy consumption, variable speed, and compact design are of utmost importance. It should be installed at the termination point of the chimney or stack section and can be mounted on masonry or metal chimneys. It is typically mounted in the vertical position but maybe sidewall vented as well. The fan assures a negative pressure is maintained in the entire chimney or stack system. The fan discharges horizontally (vertically, if side-wall vented) at a high velocity. The fan housing is hinged and the top can be opened for easy service and access to the stack. The RSHT is for use where flue gas temperatures do not exceed 1400°F (760°C) for intermittent operation and 1000°F (538°C) for continuous operation. 1x120VAC, 4.5A, 1600 RPM, Axial Vane

Standard Equipment

  • 2"x4" or 4"x4" Junction Box with Cover and Conduit
  • Fiber Mat and Mounting Brackets
  • Bird Screen
  • 5 Amp FSC Fan Speed Control

Optional Equipment

  • EFC 211 Fan Control
  • Fan Speed Control with 5A/8A/15A Options
  • PDS Proven Draft Switch
  • SCA Steel Chimney Adaptor
  • MFD-S Manual Fireplace Damper

Common Companion Product

  • Solid Fuel Fan Control
  • Manual Fireplace Damper

Control System

ENERVEX provides a full line of listed, fully integrated residential venting systems for a truly one-stop design. All products are manufactured by one manufacturer, which means our systems will work together seamlessly. No guesswork in the design process, and the flexibility to add what you need, when you need it. At ENERVEX, one supplier takes full responsibility for the performance, efficiency, and sustainability of your system with the best guarantees and warranties in the business..

Click to see Manual Draft & Damper System

The environmentally friendly ENERVEX EcoDamper System is the first combined draft and damper system for use with wood-fired fireplaces, stoves, etc. The EcoDamper System quietly manages a perfect draft and prevents heat from escaping through the chimney when the fireplace is not in use. It eliminates the need for glass doors, opening up many new design options while allowing for a larger view area of the fire and a more natural look. The system consists of the RSHT Chimney Fan, the Manual Fireplace Damper (MFD-S), and the EFC 211 Control (or just an FSC Fan Speed Control.

System Components.

  • RSHT Chimney Fan
  • Manual Fireplace Damper
  • Solid Fan Fuel Controller (EFC211)



Features

  • Quiet Operation
  • Variable-speed motor
  • Use with gas-fired appliances
  • Comes in 4 sizes
  • Complete fan and control packages available from a single manufacturer
  • Low operating costs
  • 6-months Performance Guarantee



Specification

Capacities 0-1,500 CFM (450-2,550 m3/h)
Material Stainless Steel Housing and Axial Vane
Drive Axial Vane
Motor Variable Speed, TEFC, Class H
Max. Temp Interm. 1400° (760°C), Contin. 1000°F (540°C)
Warranty 2-Year Factory Warranty
10-Year Warranty Against Corrosion Perforation
Listings UL 378 Standard for Draft Equipment
UL 705 Standard for Power Ventilators
CSA3-B255-M81 Standard for Mechanical Flue Gas Exhauster

Model RSHT 016
Discharge  Horizontal
Fan Type Axial Vane
Motor Type Totally enclosed, Variable speed, Class F
Voltage   VAC 1x120V @ 60 Hz
Amperage   Amps 4.40
RPM  1580
CFM at 0.0Ps 1460
Motor Output  hp / kW  0.47 / 0.35
Weight lbs / kg 47.2 / 21.4

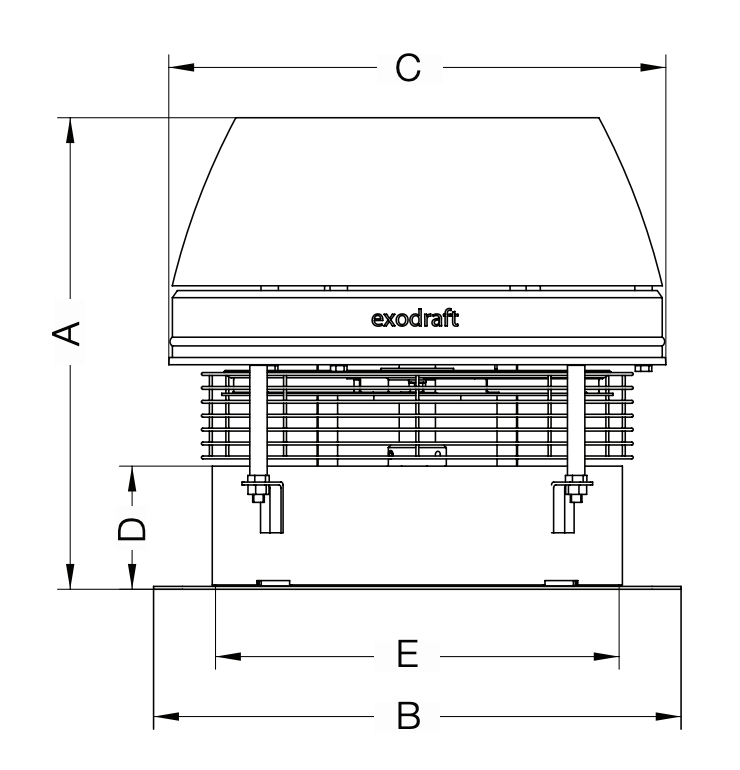

Dimensions A in / mm 15.7 / 400
B x B in / mm 18.8 / 478
C in / mm 17.4 / 441
D in / mm 3.9 / 100
E in 15.0 / 380
Temperature Rating Interm. 1400ºF / 760ºC
Cont. 1000ºF / 538ºC
***The RSHT is type-tested according to UL378 at 1000 °F flue gas temperature in 70 °F ambient temperature.



Controls

No other residential draft control solutions offer a more straightforward installation and greater adaptability to changing conditions. ENERVEX gives you precise and safe control of your fireplace or stove, including protection against:

  • Spillage from the fireplace opening
  • Erratic draft
  • Erratic flame pattern
  • Mechanical or electrical failures

All of our controllers are built to integrate seamlessly with our chimney fans. This modular approach reduces risk and guesswork during the design process and delivers the flexibility to add what you need when you need it. Safe, efficient, easy to install, and easy to maintain.

Click to see controls

PDS Proven Draft Switch

 protect against the insufficient draft and unsafe draft conditions caused by a mechanical or electrical failure.

Solid Fuel Fan Controller

 monitors and maintains proper draft in solid-fuel fired heating appliances by monitoring the speed of a chimney fan.

Smart Remote Control for Chimney Fans

 With an Xzense control (in conjunction with an exodraft chimney fan system), you obtain full control of your fireplace and maximum comfort.



Accessories
We complete our systems with the addition of a wide range of accessories. That is one of the advantages of working with a single manufacturer. No need to deal with multiple suppliers hoping everything will go together properly in the field.

Click to see accessories

SCA Steel Chimney Adapter

 The adapter used to provide support for the installation of an RS or RSHT chimney fan on a round steel chimney.

ASCA Steel Chimney Adapter

 The adapter used to provide support for the installation of an RS or RSHT chimney fan on a round, air-cooled steel chimney.

MFD-S Manual Fireplace Damper

 This is an energy-saving, low profile, manually operated fireplace damper used as a component in a combined fan and damper system for use with solid-fuel applications only.

Click HERE to shop for more Accessories



Downloads

Product brochure

Installation Manual - RSHT
