SKU:102.0499.1200 + 301.0108.1200

Enervex RSHT 012 EcoDamper Wood Burning Chimney Fan System with 8 Amps Fan Speed Control

Name: Enervex RSHT 012 EcoDamper Wood Burning Chimney Fan System with 8 Amps Fan Speed Control
Brand: Enervex
SKU: 102.0499.1200 + 301.0108.1200
Price: 4393.0 USD
Availability: InStock

$4,393.00

Sale Sold out

Shipping calculated at checkout.

Product variants

Controls & Accessories

Steel Chimney Adapters for Air Cooled Chimneys for RS and RSHT 009 to 014 - ASCA

Steel Chimney Adapter for Air Cooled Chimneys for RS and RSHT 012 and 014 - ASCA

Steel Chimney Adapters for Air Cooled Chimneys for RS and RSHT 012 to 016 - ASCA

Steel Chimney Adapter for RS and RSHT 012 and 014

MFD-S Manual Fireplace Dampers

MFD Slip Ring for Air Cooled Chimneys

Free Shipping on Orders Over $300
Same-Day Order Processing

Overview

Perfect Fire. Any Fuel. ENERVEX provides a full line of listed, fully integrated residential venting systems for a truly one-stop design.

All products are manufactured by one manufacturer, which means our systems will work together seamlessly. No guesswork in the design process, and the flexibility to add what you need, when you need it.

At ENERVEX, one supplier takes full responsibility for the performance, efficiency and sustainability of your system with the best guarantees and warranties in the business.

Corporate History

Innovative Venting Designs. Engineered for Savings.

ENERVEX is a world-leading supplier of mechanical draft systems and integrated venting design solutions. We introduced the industry’s first mechanical draft fan in 1958 and today we deliver custom-built, one-stop venting systems from boiler outlet to chimney termination. ENERVEX serves North and Central America as well as the Middle East, operating from our 80,000-sq. ft. facility in Atlanta, GA.

ENERVEX evaluates and builds every solution from the ground up with careful evaluation of the unique cost variables and long-term financial savings for each customer. Through superior manufacturing technology and decades of experience, we’re delivering high-quality, listed and certified venting solutions that are economical, environmentally sustainable, aesthetically pleasing, reliable, and code compliant. Backed by the best performance guarantee in the business.

All of our solutions are delivered under a single, highly respected name with full responsibility taken for operational excellence. That’s our performance guarantee, and the reason why the ENERVEX brand has been trusted by some of the most successful projects in the world.

Established in 1990, ENERVEX is based in Alpharetta, Georgia and operates in a number of countries with emphasis on the US, Canada, Central American and the Middle East.

The company's global business is 70 percent commercial (offices, healthcare, education, sports facilities, multi-family and mixed-use buildings, hotels and resorts) and 30 percent residential.

Since the invention of the chimney fan, ENERVEX continues to bring innovative draft control and mechanical draft solutions to market:

Modulating mechanical draft systems (1991)
Modulating combustion air supply systems (1995)
True inline mechanical draft fans (2006)
Fan-powered flue gas economizers (2011)
Inline flue gas economizer with modular heat exchanger systems (2013)
Ultra-energy efficient, permanent-magnet motors – standard in most products (2015)
Single universal chimney systems listed for virtually all venting applications (2015)
High-temp, pressure & leak-resistant graphite gaskets for sealing fan/chimney joints (2015)
ONLY supplier with a 6-Month Performance Guarantee (ALWAYS)

Description

Manual Draft and Damper System (Manual Fan Speed Control)

An economical, sustainable and quiet draft solution for wood-fired fireplaces that saves energy and maintains safe and proper draft while protecting against dangerous chimney downdraft and fireplace spillage.

The environmentally friendly ENERVEX EcoDamper System is the first combined draft and damper system for use with wood-fired fireplaces, stoves etc.

The EcoDamper System quietly manages a perfect draft and prevents heat from escaping through the chimney when the fireplace is not in use. It eliminates the need for glass doors, opening up many new design options while allowing for a larger view area of the fire and a more natural look.

The system consists of the RSHT 012 Chimney Fan, the Manual Fireplace Damper (MFD-S) and just an FSC Fan Speed Control.

Features:

Can be integrated into virtually any solid fuel fired fireplace or stove design design
Perfect draft saves fuel, eliminates spillage & carbon emissions
Protects against downdrafts and spillage
Chimney can be closed when fireplace is not in use, saving energy
No need for glass doors

Benefits:

Provides ambiance
Ensure proper draft & safe operating conditions at all times
Save fuel and energy
Get design freedom for virtually any chimney application
Discreet termination

How it works:

The Eco Damper connects a draft and safety controller, the Fan Speed Control to an RSHT Chimney Fan, the MFD-S Manual Fireplace Damper.

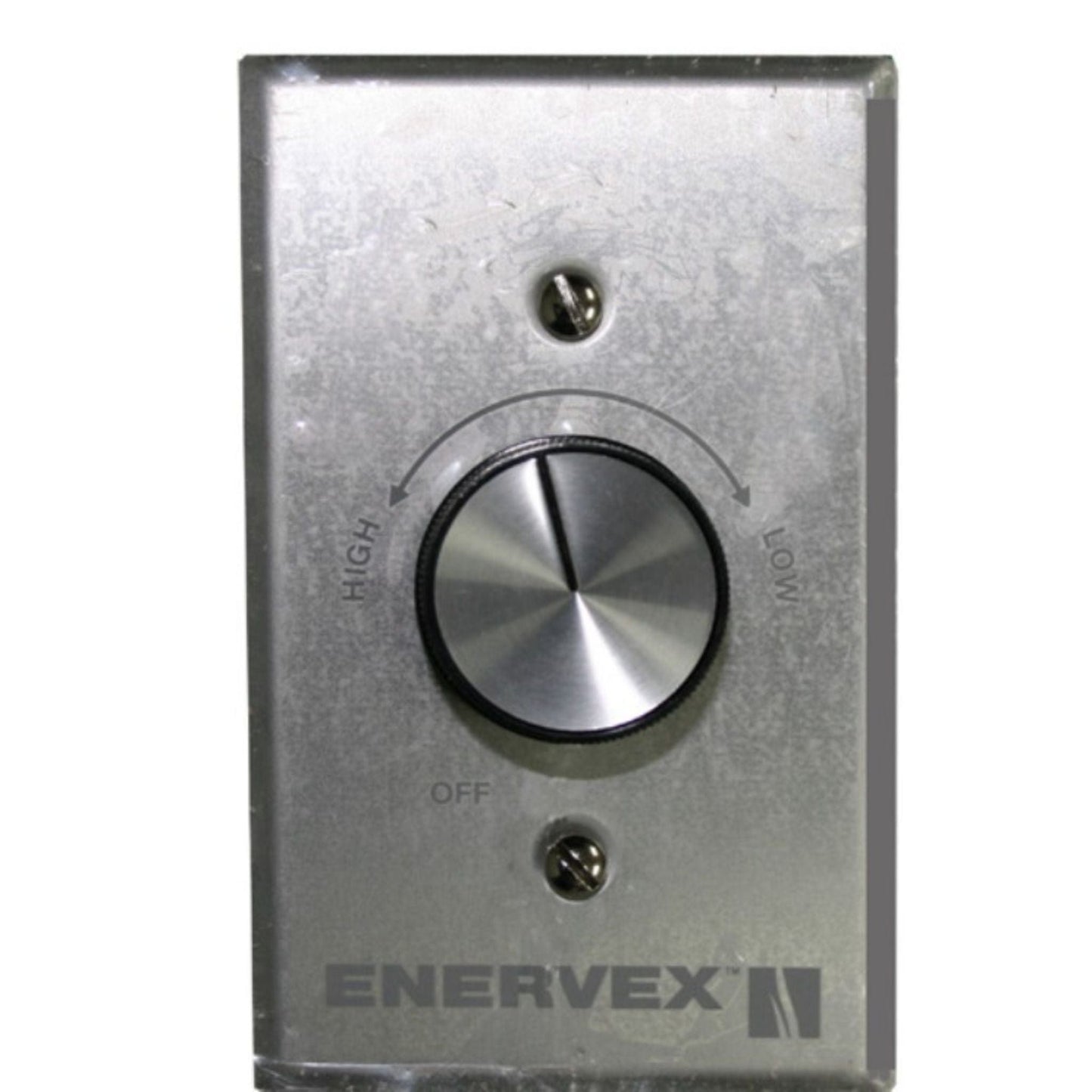

FSC Fan Speed Control

The Fan Speed Control is a draft controller that is used with wood-fired appliances such as fireplaces, stoves and pizza ovens which can be purchase in 5A, 8A and 15A.

Features:

Use with RS-HT Chimney Fans
made of Stainless Steel
Definitely an energy saver

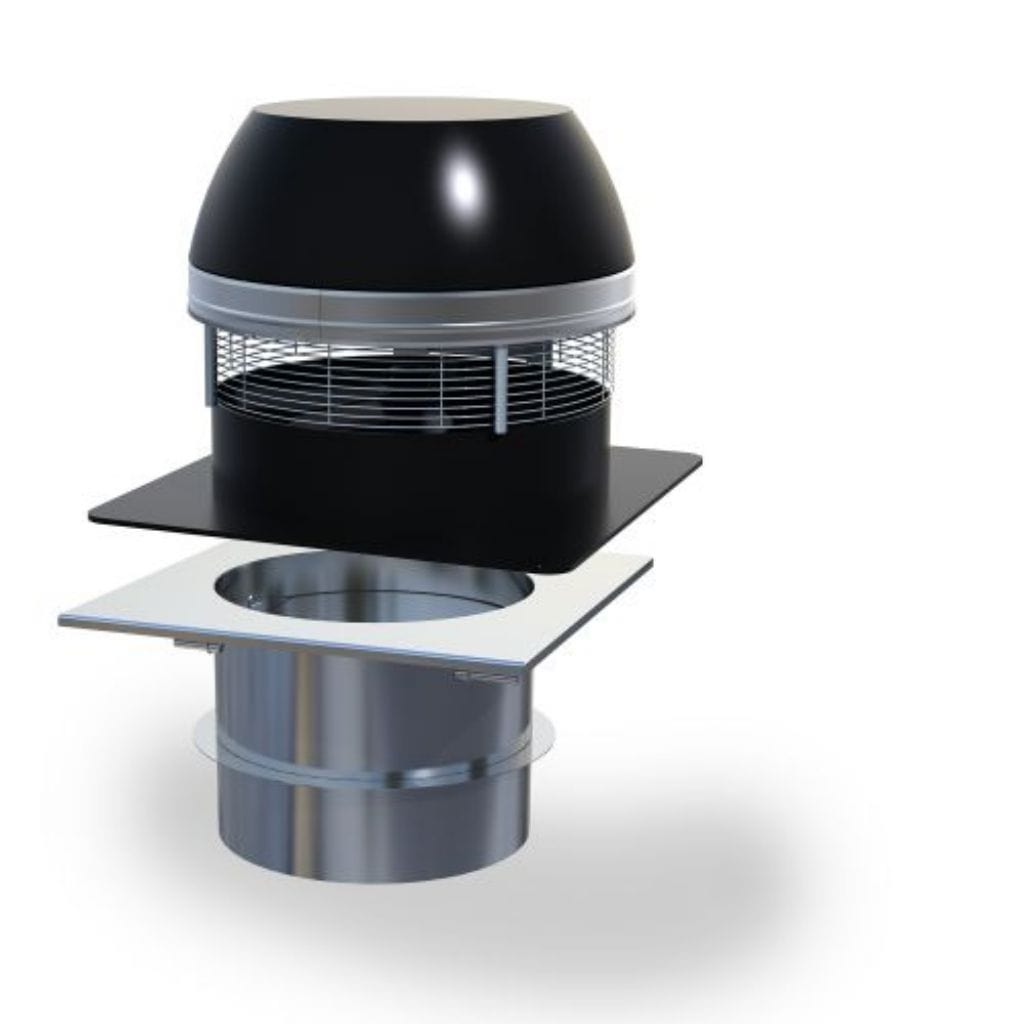

RSHT 012 Chimney Fan

Tired of smoke getting into your eyes? The RSHT is the cure. It will literally suck the smoke out from the chimney flue This high-temperature exhaust fan is typically used in venting solid-fuel fireplaces, BBQs, pizza ovens and stoves.

Installation is clean and easy - and the fan's compact design is barely visible from the ground level. The fan can be recessed or hidden behind the chimney top enclosure.

Features:

Quiet Operation
Variable-speed motor
Use with solid-fuel fired appliances
Comes in 4 sizes
Complete fan and control package available from a single manufacturer
Low operating costs
6-months Performance Guarantee

MFD-S Manual Fireplace Damper

The MFD-S Manual Fireplace Damper for solid fuel prevents excess heat from escaping through the chimney when the fireplace is not in use, and prevents backdraft down the chimney. It is designed for chimney top installations.

The MFD-S is a manual operated and gravity activated fireplace damper for round chimneys. Although it is designed to support and function with an ENERVEX chimney fan, it works equally well without it. It can be used as a replacement for worn-out, zero clearance fireplace dampers.

The damper is operated with a pull chain and handle (included) mounted in the fireplace.

The MFD-S is designed for chimney top installations and is rated for temperatures up to 1400°F (760°C).

Features:

Saves energy
Easily operated via a pull chain
No power required
Fits most round standard chimneys

Download EcoDamper Brochure here.

Specification

Model	EXH1126-8 Fan Speed Control
Voltage	1 x 120 V AC, 60 Hz
Switch	Rotary ON/OFF
Switch	Silver alloy contacts
Use with:	RSV 016
	RSV 315
	GSV 016
	GSV 315
Listing Certification	UL378 Standard for Draft Equipment
Listing Certification	UL508 Standard for Industrial Controls

NOTE: The RSV and GSV 400 and 450 operate with 3-phase voltage and cannot be controlled with this kind of fan speed control.

Model	RSHT Chimney Fan
Capacities	0-1,500 CFM (450-2,550 m3/h)
Material	Stainless Steel Housing and Axial Vane
Drive	Axial Vane
Motor	Variable Speed, TEFC, Class H
Max. Temp	Interm. 1400° (760°C), Contin. 1000°F (540°C)
Listings	UL 378 Standard for Draft Equipment UL 705 Standard for Power Ventilators CSA3-B255-M81 Standard for Mechanical Flue Gas Exhauster

Model			RSHT 012
Discharge			Horizontal
Fan Type			Axial Vane
Motor Type			Totally enclosed, Variable speed, Class F
Voltage		VAC	1x120V @ 60 Hz
Amperage		Amps	1.33
RPM			1600
CFM		at 0.0Ps	550
Motor Output		hp / kW	0.13 / 0.10
Weight		lbs / kg	33.5 / 15.2
Dimensions	A	in / mm	12.8 / 325
	B x B	in / mm	14.3 / 364
	C	in / mm	13.5 / 344
	D	in / mm	3.3 / 85
	E	in	11.0 / 280
Temperature Rating		Interm.	1400ºF / 760ºC
Temperature Rating		Cont.	1000ºF / 538ºC

***The RSHT is type-tested according to UL378 at 1000 °F flue gas temperature in 70 °F ambient temperature.

Model	MFD-S Manual Fireplace Damper
Material	Stainless Steel 316L
Available Sizes	6
Warranty	2-year Factory Warranty

Accessories

We complete our systems with the addition of a wide range of accessories. That is one of the advantages of working with a single manufacturer. No need to deal with multiple suppliers hoping everything will go together properly in the field.

Click to see accessories

MFD-S Manual Fireplace Damper

This is an energy-saving, low profile, manually operated fireplace damper used as a component in a combined fan and damper system for use with solid-fuel applications only.

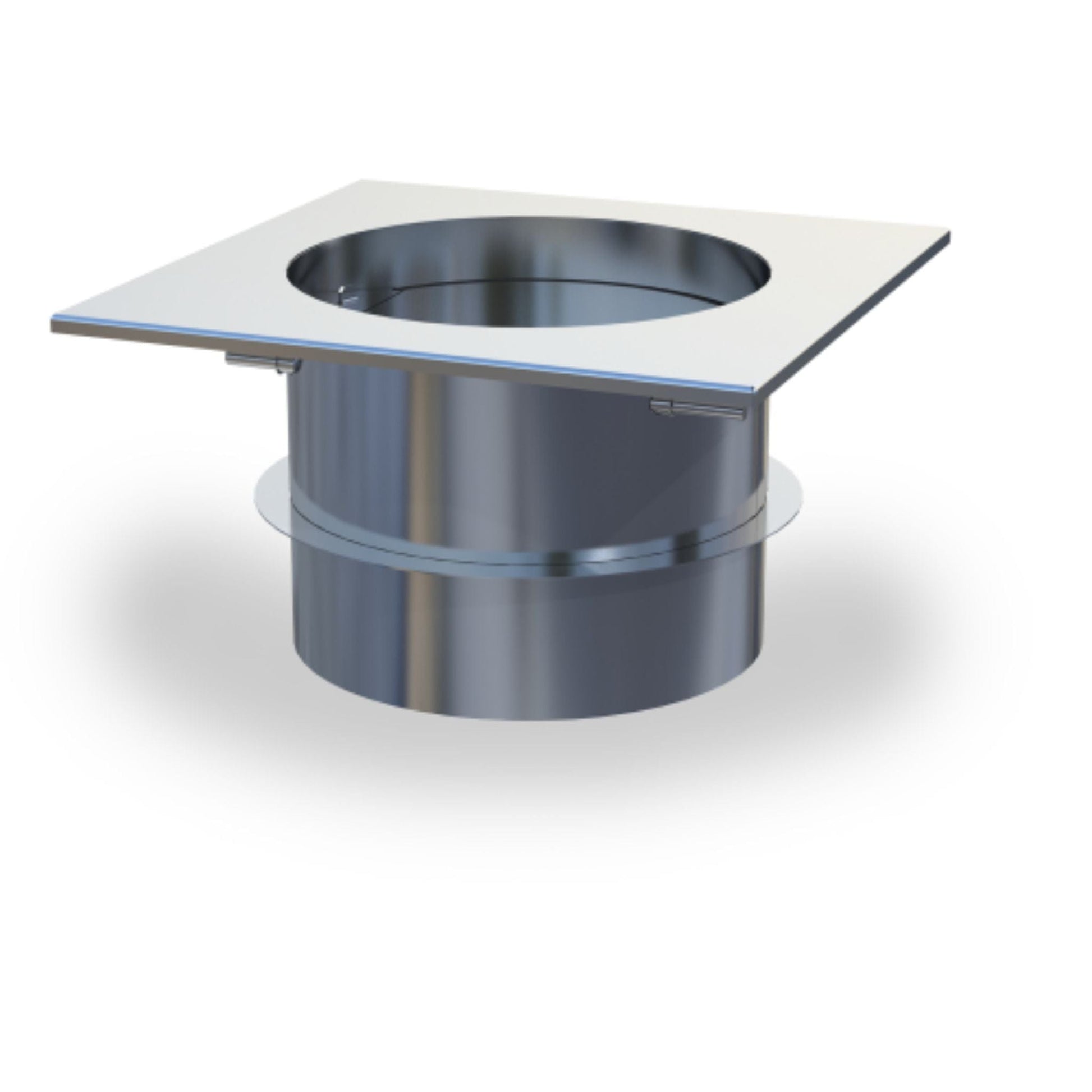

SCA Steel Chimney Adapter

The adapter used to provide support for the installation of an RS or RSHT chimney fan on a round steel chimney.

ASCA Steel Chimney Adapter

The adapter used to provide support for the installation of an RS or RSHT chimney fan on a round, air-cooled steel chimney.
