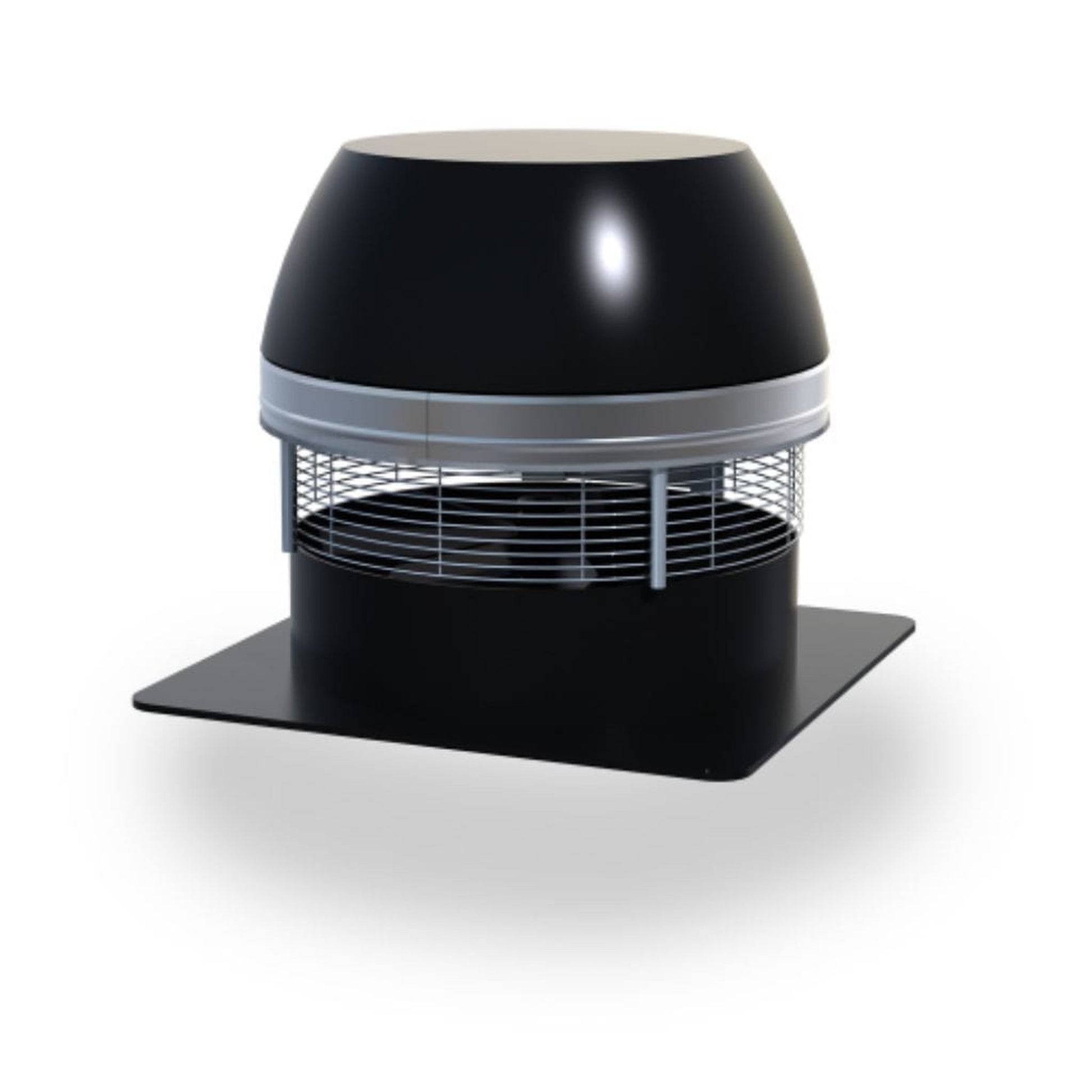

The RSHT Fan is specifically designed for applications where efficient operation, low noise level, low energy consumption, variable speed and compact design are of utmost importance. It should be installed at the termination point of the chimney or stack section and can be mounted on masonry or metal chimneys. It is typically mounted in the vertical position, but may be sidewall vented as well.

The fan assures a negative pressure is maintained in the entire chimney or stack system. The fan discharges horizontally (vertically, if side-wall vented) at a high velocity.

The fan housing is hinged and the top can be opened for easy service and access to stack.

The RSHT is for use where flue gas temperatures do not exceed 1400°F (760°C) for intermittent operation and 1000°F (538°C) for continuous operation.

What's Included

• 2"x4" or 4"x4" Junction Box with Cover and Conduit
• Fiber Mat and Mounting Brackets
• Bird Screen
• 5 Amp FSC Fan Speed Control

Not Included (Sold Separately)

• ADC 100 Fan Control
• ADC 150 Modulating Control
• EFC 211 Fan Control
• PDS Proven Draft Switch
• SCA Steel Chimney Adaptor
• MFD-S Manual Fireplace Damper
• MFD Mechanical Fireplace Damper

Features

• Material
  • Housing is made of 3/16" stainless steel.
  • Finished with one coat of black paint for added corrosion resistance.
• Motor
  • Split capacitor, totally enclosed.
  • Class H insulated, IP54 Protection Class.
  • Sealed ball bearings.
  • Variable Speed.
  • Thermal overload protection.
• Quiet Operation
• Variable-speed motor
• Use with solid-fuel-fired appliances

• Low operating costs
• 6-months Performance Guarantee

Specifications

Technical Drawings & Dimensions

Dimensions (in / mm)

Parts Diagram

Warranty

	2-Year Factory Warranty We promise the original user that we will replace or repair as we may elect, any part or parts of the new RS Chimney Fan which are defective in material or workmanship without charge for parts and labor (not including labor for dismantling and installation, freight, etc.) during the first 2-years following the date of invoice.
	10-Year Factory Warranty Against Corrosion Perforation We promise the original user that we will replace or repair as we may elect, any part or parts of the RS Chimney Fan which are perforated due to corrosion without charge for parts or labor (not including dismantling and installation, freight, etc.) during the first 10-years following the date of invoice.

Documents & Files

• Installation & Operating Manual
• Warranty Terms

Frequently Asked Questions
