SKU:301.0105.1200

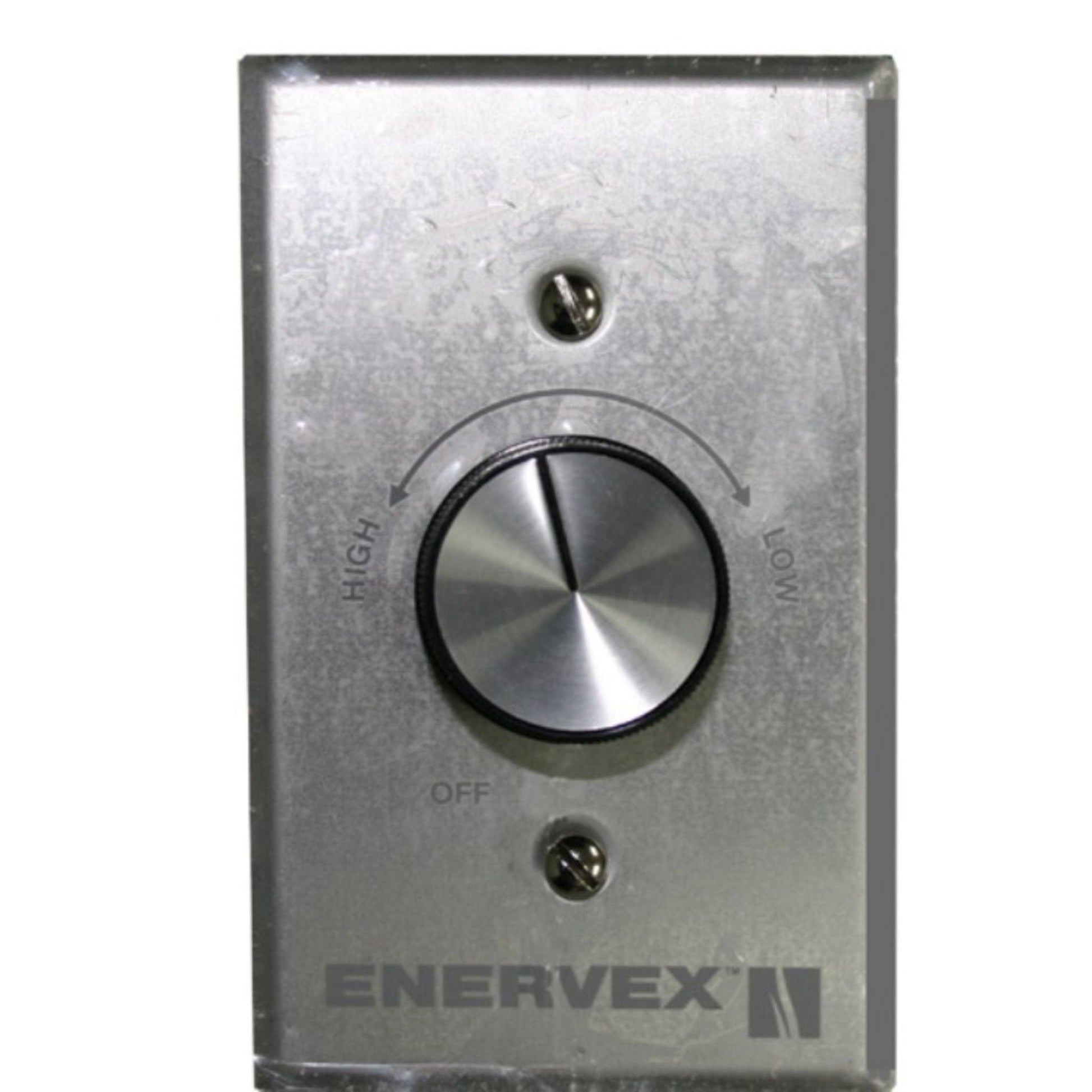

Enervex 5A Fan Speed Control
Enervex 5A Fan Speed Control
Regular price
$94.00
Regular price
$0.00
Sale price
$94.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Free Shipping on Orders Over $400
- Same-Day Order Processing
The FSC, Fan Speed Control, controls the speed of single-phase RS, RSV, GSV, RSHT fans, and ventilators. The FSC is specifically designed to allow a user to vary the speed of split-capacitor motors. The control works by reducing the line voltage to the motor, allowing the fan to use only the energy required to maintain the desired volume of airflow (fan speed).
Specifications
| Model Number | EXH1126-5 |
| Item Number | 301.0105.1200 |
| Maximum Load | 5 Amps |
| Voltage | 1 x 120 V AC, 60 Hz |
| Switch Control | Rotary ON/OFF |
| Material | Silver alloy contacts |
| Dimensions | 2.75" (W) x 4.5" (H) |
| Use with | All fans, except: •RSV 016 •RSV 315 •GSV 016 •GSV 315 |
| Listings | •UL378 Standard for Draft Equipment •UL508 Standard for Industrial Controls |
Note: The RSV and GSV 400 and 450 operate with 3-phase voltage and
cannot be controlled with this kind of fan speed control.
Technical Drawings & Dimensions
