OVERVIEW
Steel Chimney Adapters for Air Cooled Chimneys. The ASCA Steel Chimney Adapter is used to provide support for the installation of an RS or RSHT chimney fan on a round, air-cooled steel chimney. It is mounted at the chimney termination point.

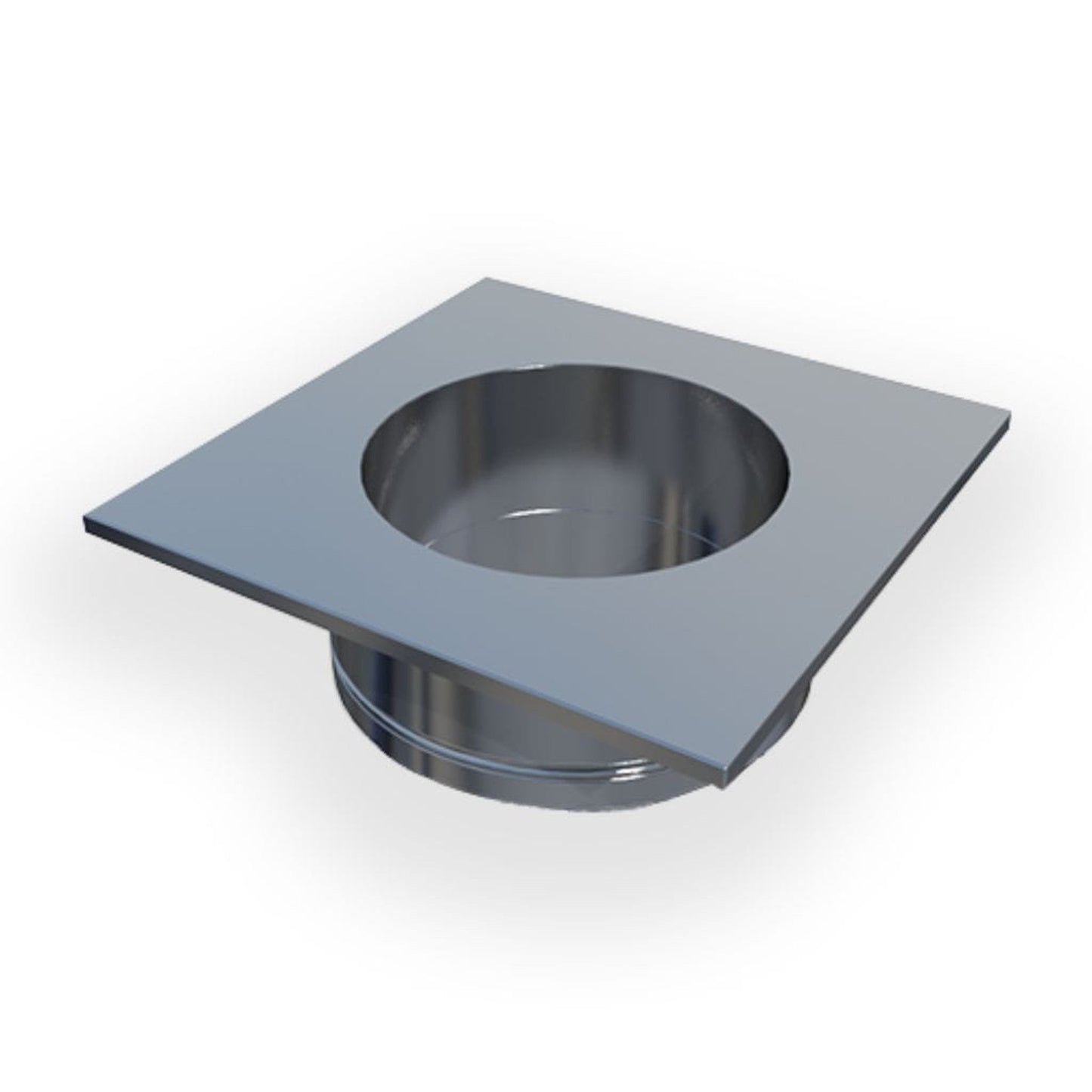

The adapter consists of a square mounting plate to support the fan and a round collar that can slide into the chimney for a tight fit. The outer diameter of the collar is 1/8" smaller than the inner diameter of the chimney. The 5" collar eliminates the need to secure the adapter externally.
Common Companion Products
-
Chimney Fan - HT
- Chimney Fan
Features
- Can be used on most round chimneys
- Integrated support allows venting of inner walls
- Easy to install without use of tools
Specification
Standard Sizes | 4" to 13" (150mm to 325mm) |
Material | Stainless Steel 316L |
Collar Size | 1/8" (3 mm) less than the chimney ID |
Warranty | 2-year Factory Warranty |
