SKU:222.0400.2005
Enervex ASCA for RS and RSHT 009
Enervex ASCA for RS and RSHT 009
Regular price
$541.00
Regular price
$570.00
Sale price
$541.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
OVERVIEW

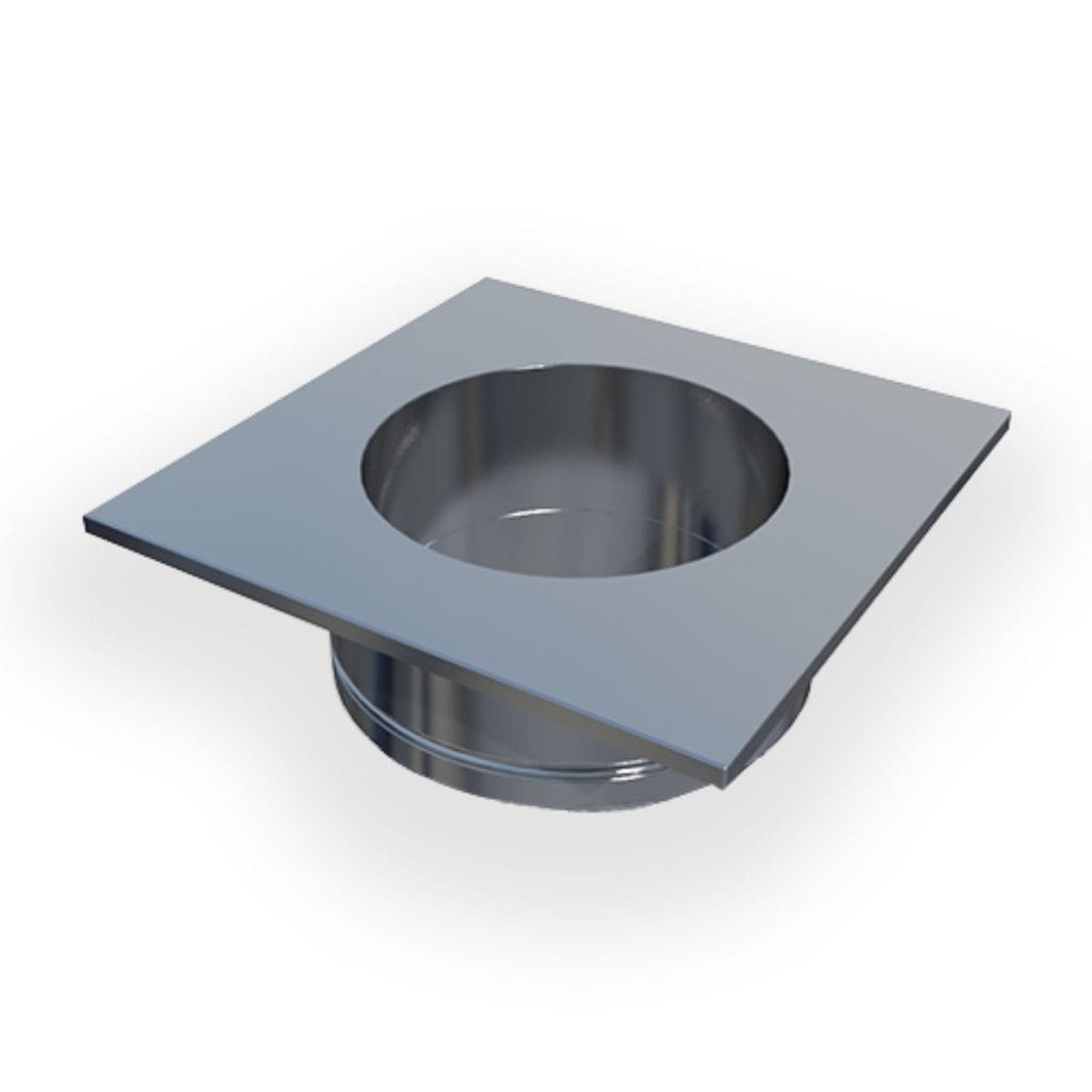

Steel Chimney Adapters for Air Cooled Chimneys. The ASCA Steel Chimney Adapter is used to provide support for the installation of an RS or RSHT chimney fan on a round, air-cooled steel chimney. It is mounted at the chimney termination point.
The adapter consists of a square mounting plate to support the fan and a round collar that can slide into the chimney for a tight fit. The outer diameter of the collar is 1/8" smaller than the inner diameter of the chimney. The 5" collar eliminates the need to secure the adapter externally.
Common Companion Products
-
Chimney Fan - HT
- Chimney Fan
Features
- Can be used on most round chimneys
- Integrated support allows venting of inner walls
- Easy to install without use of tools
Specification
| Standard Sizes | 4" to 13" (150mm to 325mm) |
| Material | Stainless Steel 316L |
| Collar Size | 1/8" (3 mm) less than the chimney ID |
| Warranty | 2-year Factory Warranty |
