Empire Archway 2300 29" Wood Burning Insert

Empire Archway 2300 29" Wood Burning Insert

$3,109.00
$3,109.00
Sale Sold out
Shipping calculated at checkout.

Door Overlay (Required to Complete)

-- Please Select --

No, Thank You

Surround (Required to Complete)

-- Please Select --

No, Thank You

Fire Screen

-- Please Select --

No, Thank You

Fresh Air Kit

-- Please Select --

No, Thank You
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing

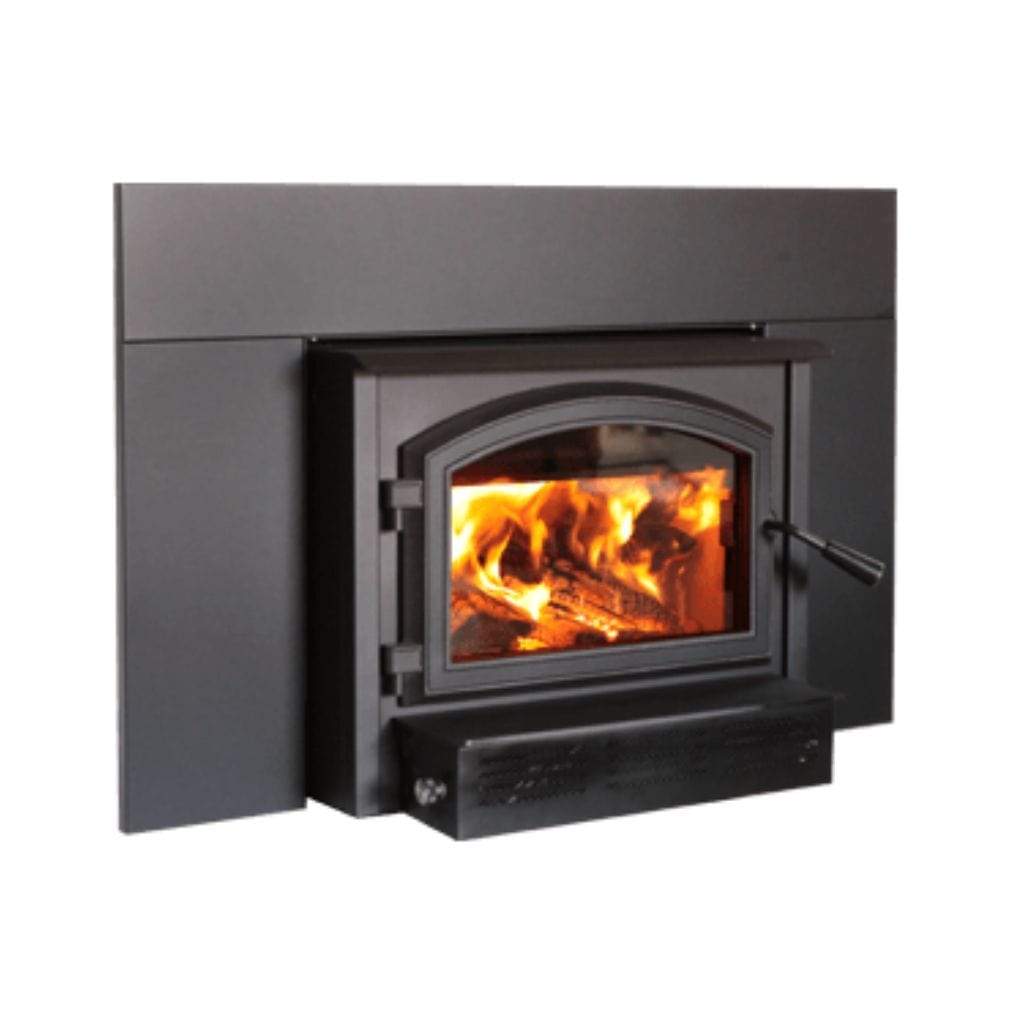

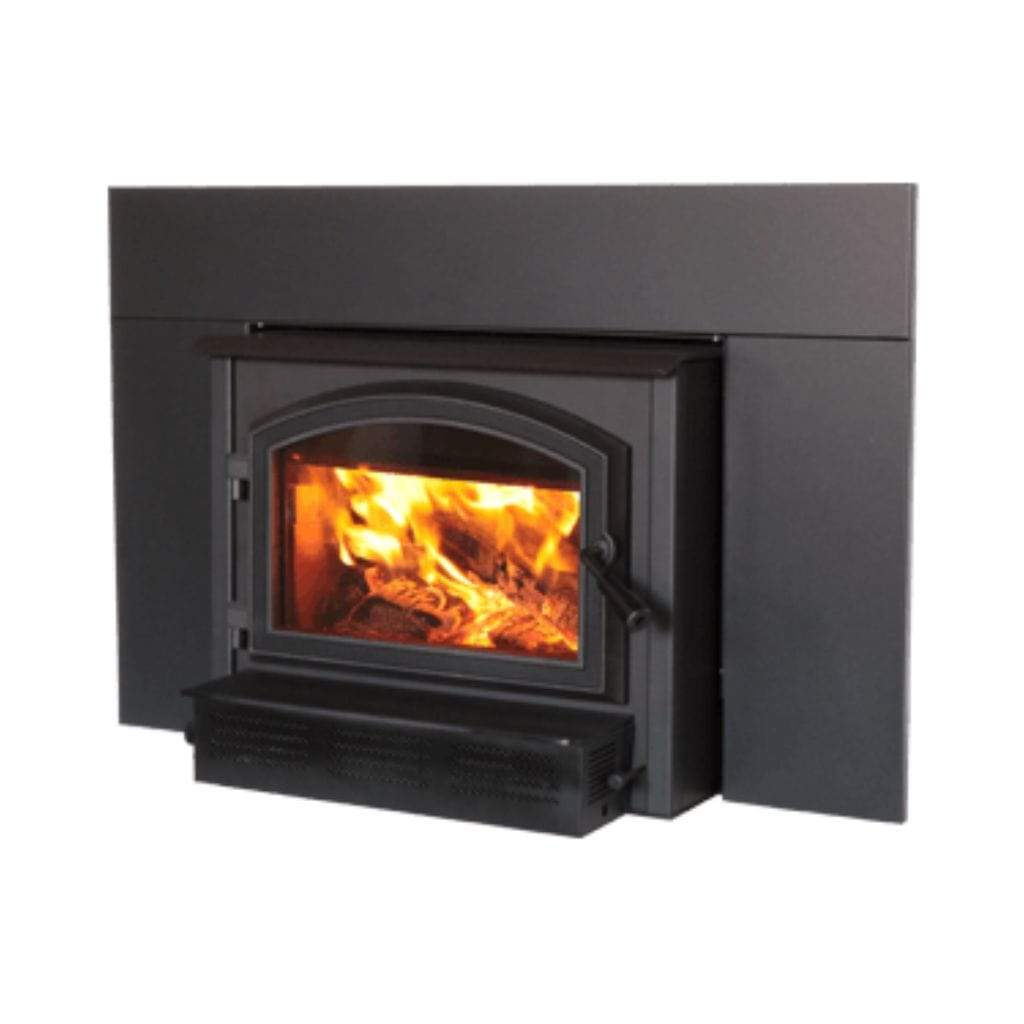

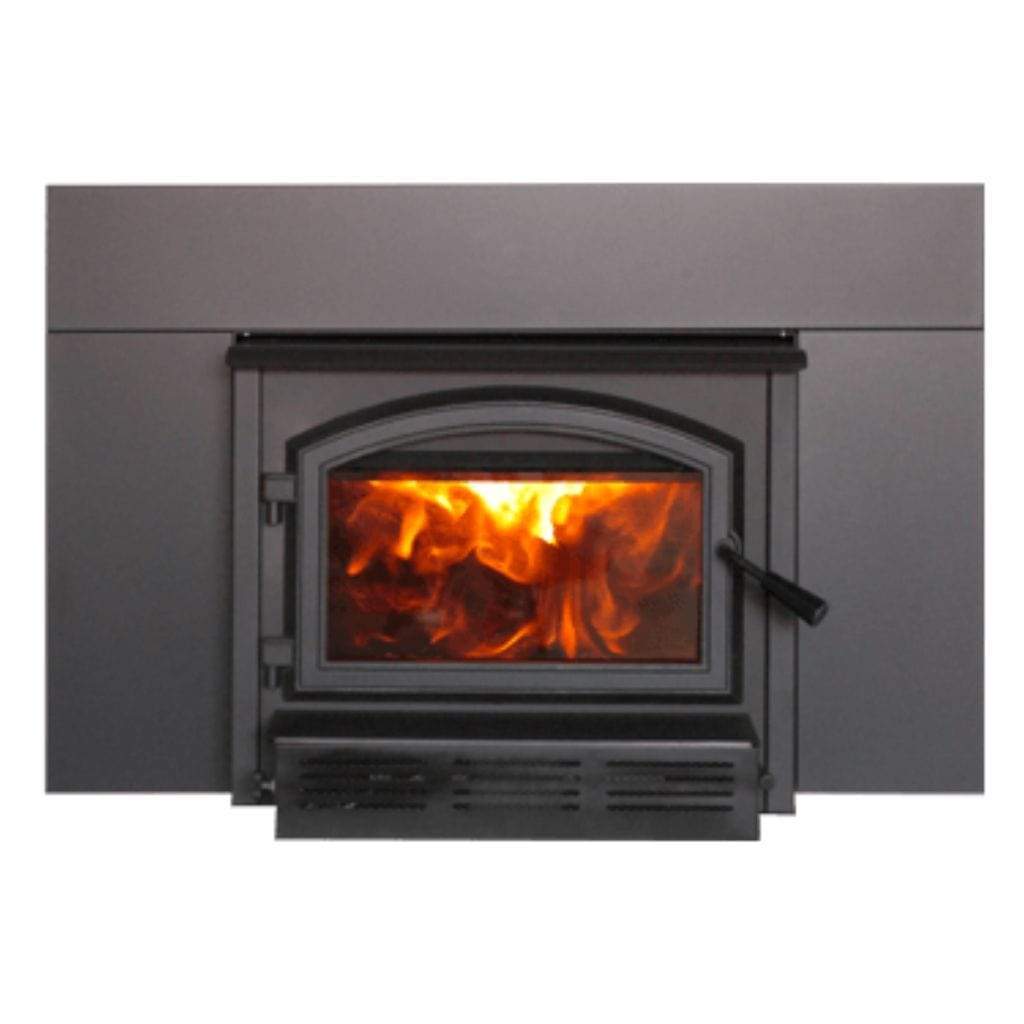

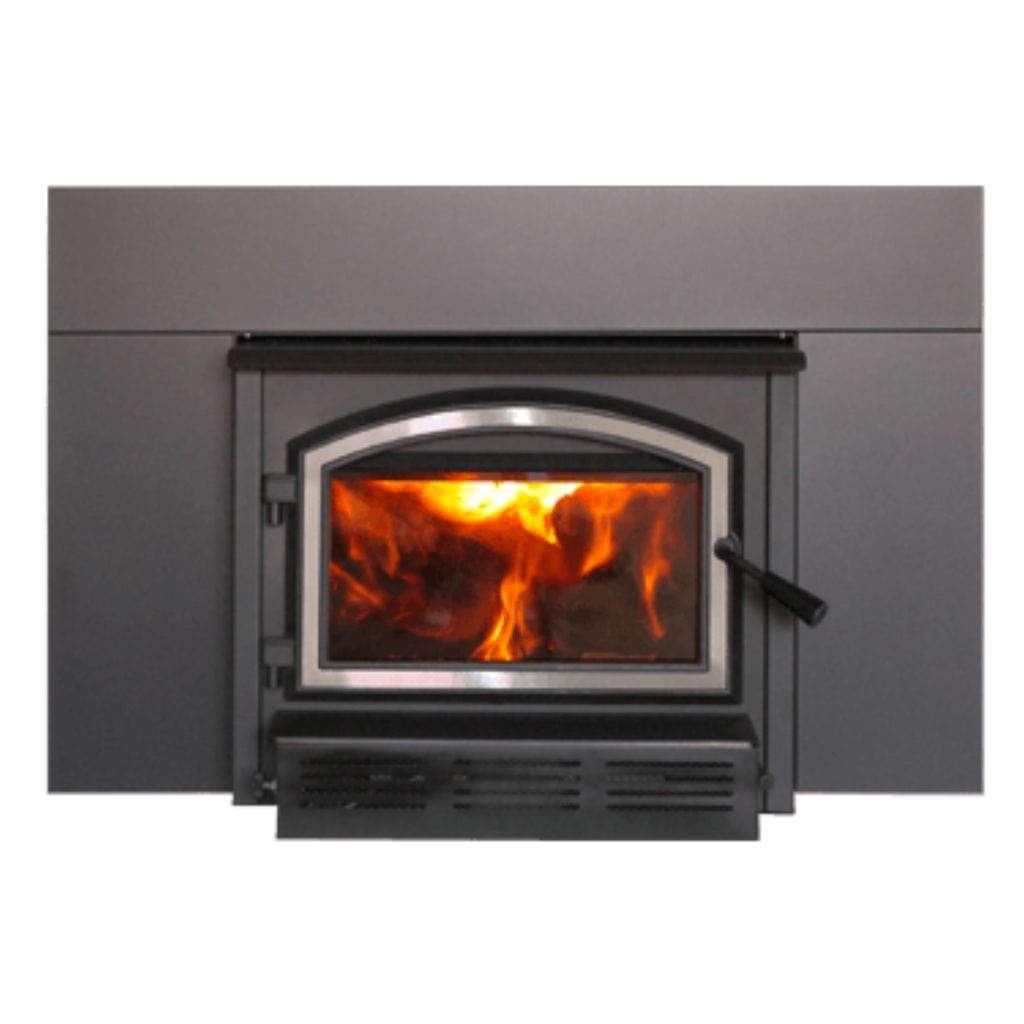

Archway 2300

The beautifully designed Archway 2300 wood stove brings the ambiance of a wood burning fire to larger homes or rooms. The standard blower, simple one lever control, and air wash system allow for easy operation and maintenance of the Archway 2300. Style options are available to ensure the Archway 2300 complements any room.

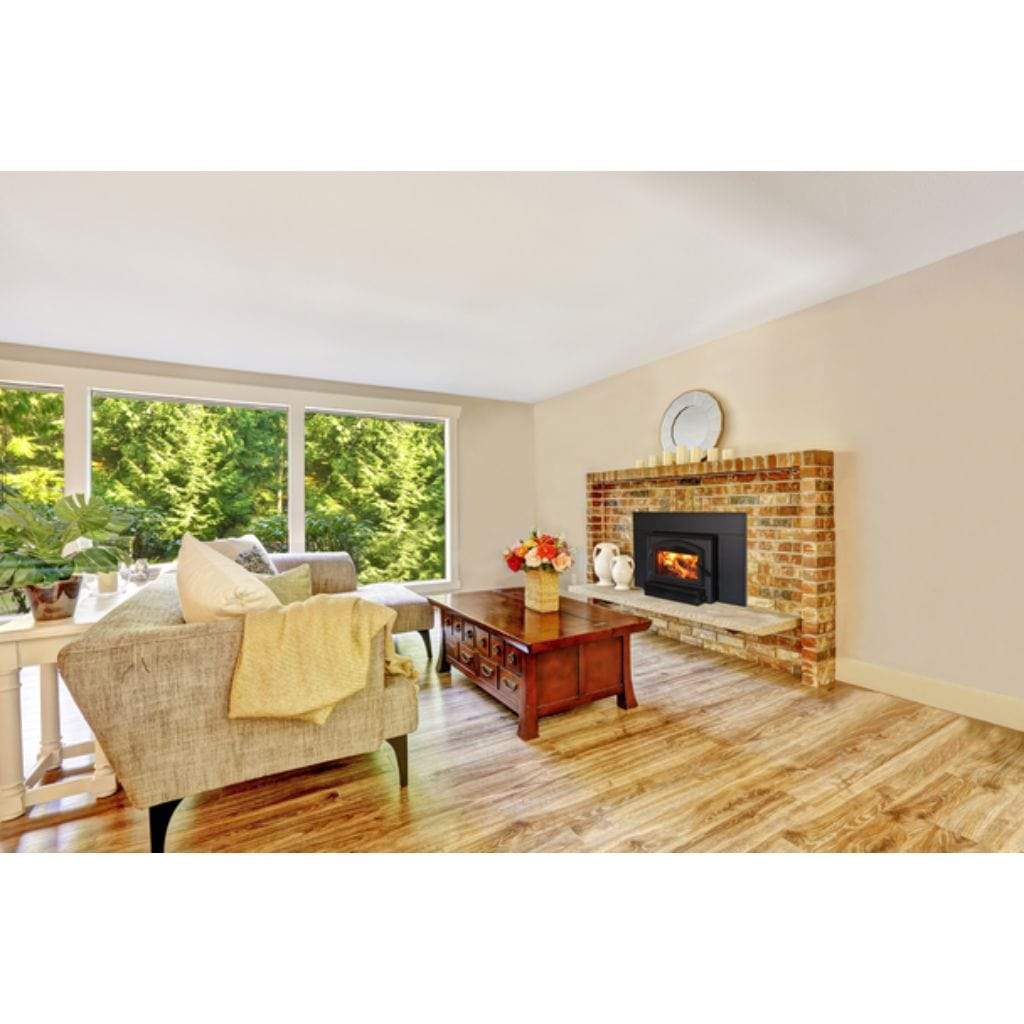

The majority of heat produced by a traditional fireplace is lost through the chimney instead of heating your home. Fireplace inserts install directly into an existing masonry fireplace and keep more of the heat produced in your home.

Effortless Heat

Empire Stove products are the simplest to use, thanks to the one-lever air control. This allows for effortless control of your fire from a roaring blaze to a slow burn. The no mess ash pan collects debris from the fire and allows you to easily remove it. Your glass window will stay clean with the integrated air wash system which uses hot air to clear debris from the glass.

Built to Last

Constructed with thick, 5/16-inch steel, Empire Stove products are built to last. Firebricks line the inside of the firebox for heat insulation and durability. The high heat ceramic baffle ensures optimal performance no matter how high the temperature rises. Our limited lifetime warranty provides protection, giving you peace of mind for years to come.

What's Included

  • Archway 2300 Wood Burning Insert
  • Blower Kit

Not Included (Sold Separately)

    • Door Overlay (Required)
    • Surround (Required)
    • Fresh Air Intake Kit
    • Fire Screen

    Features

    • Simple Operation | Easy to Maintain | Multiple Design Options
    • AIR WASH SYSTEM: Hot air circulates through the stove and keeps dirt and debris from building up on the glass, maintaining clear view of the fire.
    • DOOR LATCH: The heavy duty door latch ensures your door seals tight every time for an efficient burn.
    • BLOWER: The included blower circulates heated air back into the living space instead of up your chimney.
    • SIMPLE CONTROL: Easy to use one-lever control adjusts the burn rate to optimize burn times.
    • DURABLE STEEL: 5/16" thick steel top allows for extended heat radiation and adds lasting durability.
    • HIGH HEAT BAFFLE: The high heat ceramic baffle is made of high quality ceramic that won’t deteriorate.
    • CERAMIC GLASS: High temperature ceramic glass stands up to the changing temperatures inside the firebox.
    • FIREBRICK LINED: High-density firebricks line the interior of the firebox, allowing for closer clearances and more heat distribution into the room.

    Specifications

    Model Archway 2300
    Color Metallic Black
    Combustion Technology Non-Catalytic
    Fuel Type Dry Cordwood
    EPA Certification EPA 2020 Certified
    Firebox Size 2.4 cu. ft.
    Heating Area 500 to 2,100 sq. ft.
    BTU Ratings (AWEIS) 75,000
    Average overall efficiency - HHV 69 %
    Average overall efficiency - LHV 74 %
    Optimum efficiency 77 %
    Burn Time 8 Hour
    Diameter Flue 6-inch
    Maximum Log Length 20-inch
    Mounting Location Insert
    Decorative Style Classic/Traditional

    Dimensions

    Width 29"
    Height 24"
    Depth 19"

    Warranty

    • LIMITED LIFETIME: Combustion chamber (welds only) and cast iron door frame, Ceramic Glass, Plating (manufacture defect), step top.
    • LIMITED 7 YEAR: Surrounds, heat shields, ash drawer, pedestal, C-Cast Baffle, secondary air tubes, deflectors and supports.
    • LIMITED 5 YEAR: Handle assembly, glass retainers, air control mechanism, removable carbon steel combustion chamber components.
    • LIMITED 2 YEAR: Standard and optional blower, heat sensors, switches, rheostat, wiring and electronics.
    • LIMITED 1 YEAR: Paint peeling, gaskets, insulation, ceramic fiber blankets, firebricks and other options.
    • LIMITED 90 DAY: All parts replaced under warranty.
