SKU:WB17IN
Empire Archway 1700 27" Wood Burning Insert
Empire Archway 1700 27" Wood Burning Insert
Regular price
$2,689.00
Regular price
Sale price
$2,689.00
Unit price
per
Shipping calculated at checkout.
Door Overlay (Required to Complete)
-- Please Select --
No, Thank You
Surround (Required to Complete)
-- Please Select --
No, Thank You
Fire Screen
-- Please Select --
No, Thank You
Fresh Air Kit
-- Please Select --
No, Thank You
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
Archway 1700

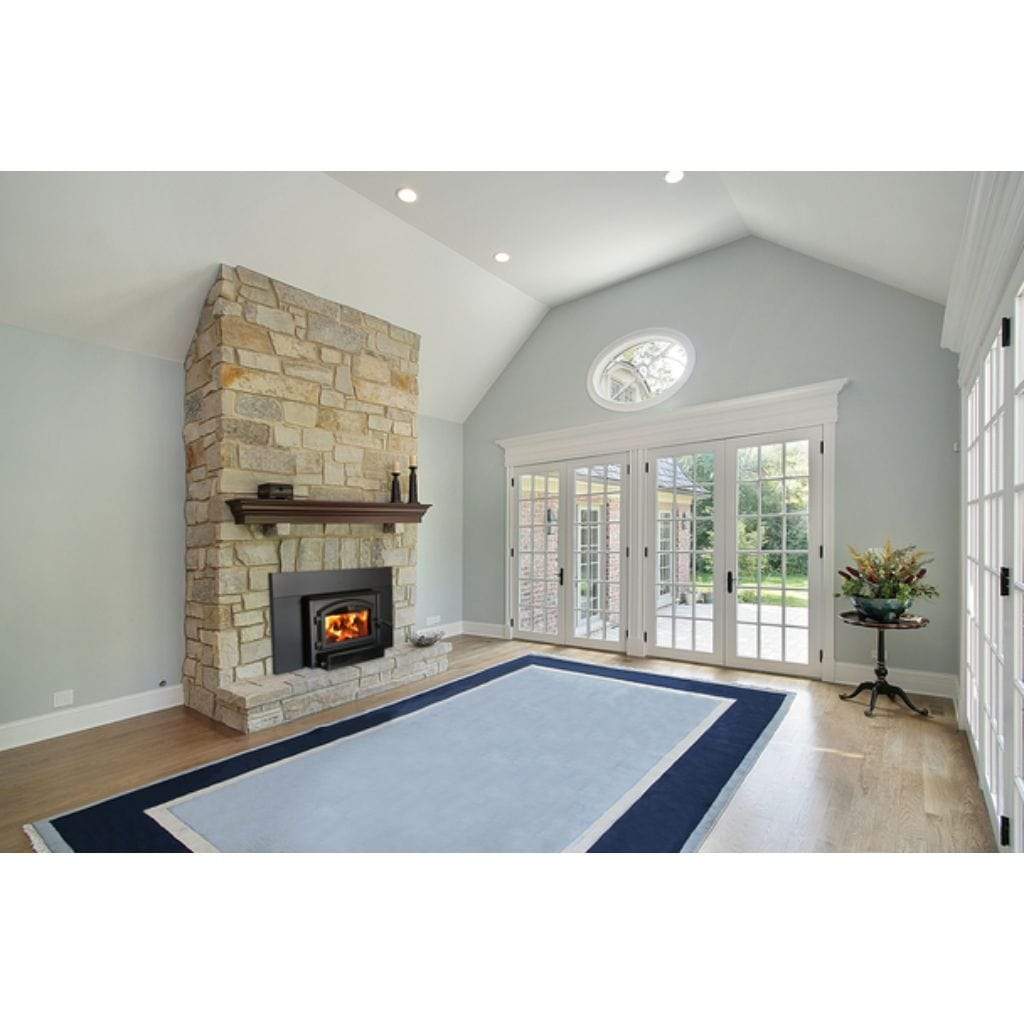

The beautifully designed Archway 1700 wood insert is perfect for smaller homes or rooms. Standard features like the included blower, the simple one lever control, and the air wash system allow for easy operation and maintenance. Style options are available to ensure the Archway 1700 beautifully complements any room.
The majority of heat produced by a traditional fireplace is lost through the chimney instead of heating your home. Fireplace inserts install directly into an existing masonry fireplace and keep more of the heat produced in your home.
Effortless Heat
Empire Stove products are the simplest to use, thanks to the one-lever air control. This allows for effortless control of your fire from a roaring blaze to a slow burn. The no mess ash pan collects debris from the fire and allows you to easily remove it. Your glass window will stay clean with the integrated air wash system which uses hot air to clear debris from the glass.
Built to Last
Constructed with thick, 5/16-inch steel, Empire Stove products are built to last. Firebricks line the inside of the firebox for heat insulation and durability. The high heat ceramic baffle ensures optimal performance no matter how high the temperature rises. Our limited lifetime warranty provides protection, giving you peace of mind for years to come.
What's Included
- Archway 1700 Wood Burning Insert
- Blower Kit
Not Included (Sold Separately)
- Door Overlay (Required)
- Surround (Required)
- Fresh Air Intake Kit
- Fire Screen
Features
- Simple Operation | Easy to Maintain | Multiple Design Options
- AIR WASH SYSTEM: Hot air circulates through the stove and keeps dirt and debris from building up on the glass, maintaining clear view of the fire.
- DOOR LATCH: The heavy duty door latch ensures your door seals tight every time for an efficient burn.
- BLOWER: The included blower circulates heated air back into the living space instead of up your chimney.
- SIMPLE CONTROL: Easy to use one-lever control adjusts the burn rate to optimize burn times.
- DURABLE STEEL: 5/16" thick steel top allows for extended heat radiation and adds lasting durability.
- HIGH HEAT BAFFLE: The high heat ceramic baffle is made of high quality ceramic that won’t deteriorate.
- CERAMIC GLASS: High temperature ceramic glass stands up to the changing temperatures inside the firebox.
- FIREBRICK LINED: High-density firebricks line the interior of the firebox, allowing for closer clearances and more heat distribution into the room.
Specifications
| Model | Archway 1700 |
| Color | Metallic Black |
| Combustion technology | Non-catalytic |
| Fuel Type | Dry Cordwood |
| EPA Certification | EPA 2020 Certified |
| Firebox Size | 1.9 cu. ft. |
| Heating Area | 500 to 1,800 sq. ft. |
| BTU Ratings (AWEIS) | 65,000 |
| Average overall efficiency - HHV | 70 % |
| Average overall efficiency - LHV | 75 % |
| Optimum efficiency | 78 % |
| Burn Time | 6 Hour |
| Diameter Flue | 6-inch |
| Maximum Log Length | 18-inch |
| Mounting Location | Insert |
| Decorative Style | Classic/Traditional |
Dimensions
| Width | 27" |
| Height | 21" |
| Depth | 13" |
Warranty
- LIMITED LIFETIME: Combustion chamber (welds only) and cast iron door frame, Ceramic Glass, Plating (manufacture defect), step top.
- LIMITED 7 YEAR: Surrounds, heat shields, ash drawer, pedestal, C-Cast Baffle, secondary air tubes, deflectors and supports.
- LIMITED 5 YEAR: Handle assembly, glass retainers, air control mechanism, removable carbon steel combustion chamber components.
- LIMITED 2 YEAR: Standard and optional blower, heat sensors, switches, rheostat, wiring and electronics.
- LIMITED 1 YEAR: Paint peeling, gaskets, insulation, ceramic fiber blankets, firebricks and other options.
-
LIMITED 90 DAY: All parts replaced under warranty.
