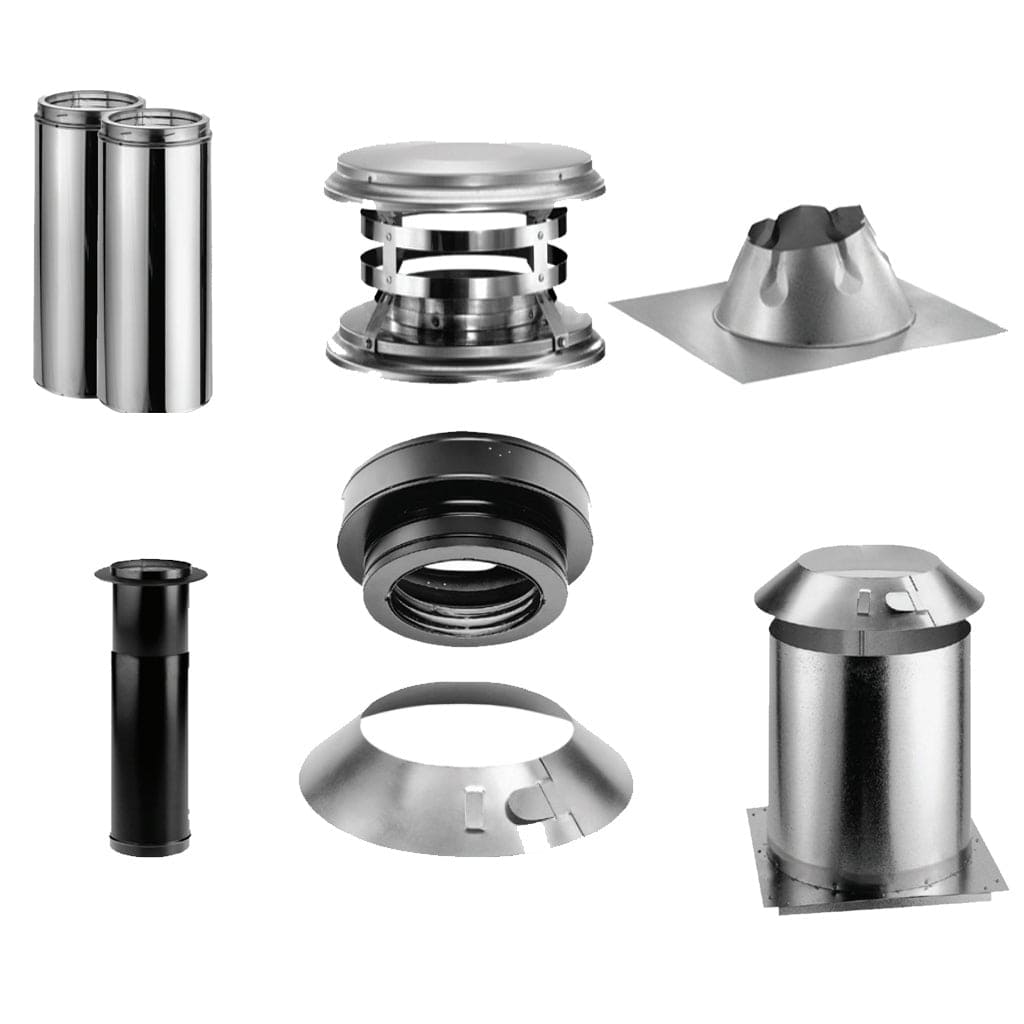

DuraVent Flat Ceiling With Black Single Wall Pipe Wood Stove Chimney Kit

Overview

Duravent is a recognized technological leader in the venting industry. Consistently the first to market with new innovations in venting systems with best in class design capabilities

Features

• DuraTech offers optimum safety and performance.
• DuraTech keeps the outer wall of the chimney cool while ensuring high flue gas temperatures for optimum draft performance.
• DuraTech inner wall is 25% thicker than competitive chimneys for an extra margin of safety. No locking bands or mechanical fasteners are required.
• DuraBlack single-wall stovepipe completes the venting system when used with one of DuraVent’s chimney products, such as DuraTech, DuraTech Canada, DuraPlus, or DuraTech Premium.
• Built to DuraVent’s high standards, DuraBlack is constructed with die-formed end fittings.

Included Items

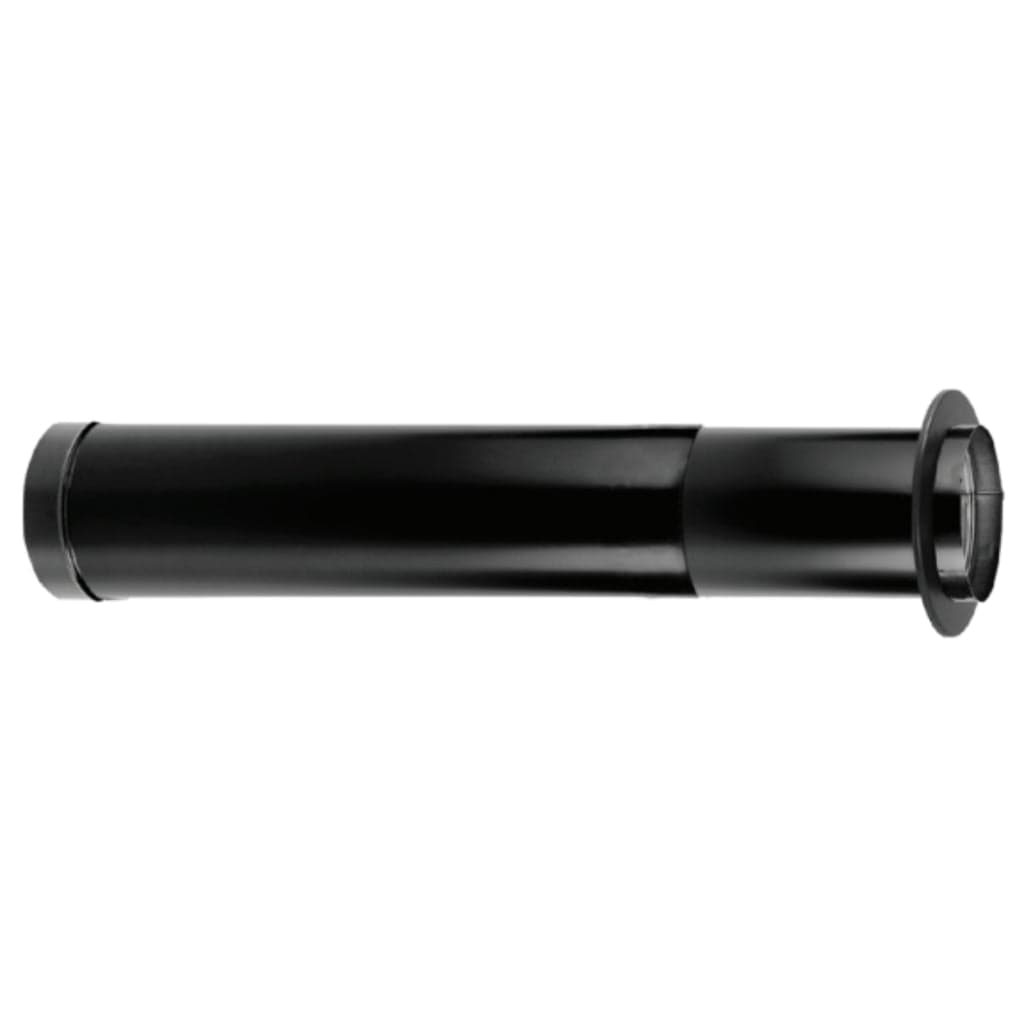

DuraBlack Pipe Telescoping Length With Trim - 6DBK-TL
	Use for a two-piece installation. Connects directly from stove to ceiling support box or finishing collar.

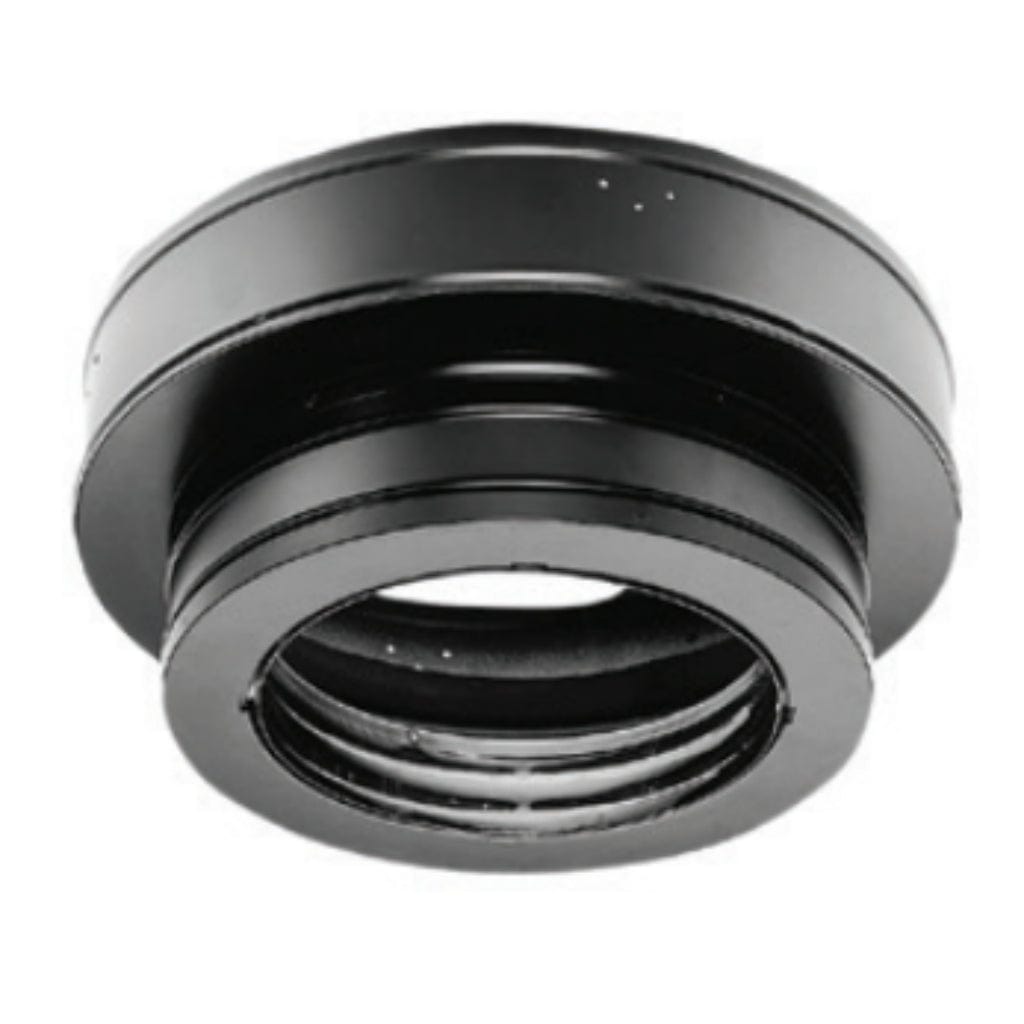

DuraTech Round Ceiling Support Box - 6DT-RCS
	Supports chimney pipe and provides a positive connection between support box and chimney with a built-in twist-lock.

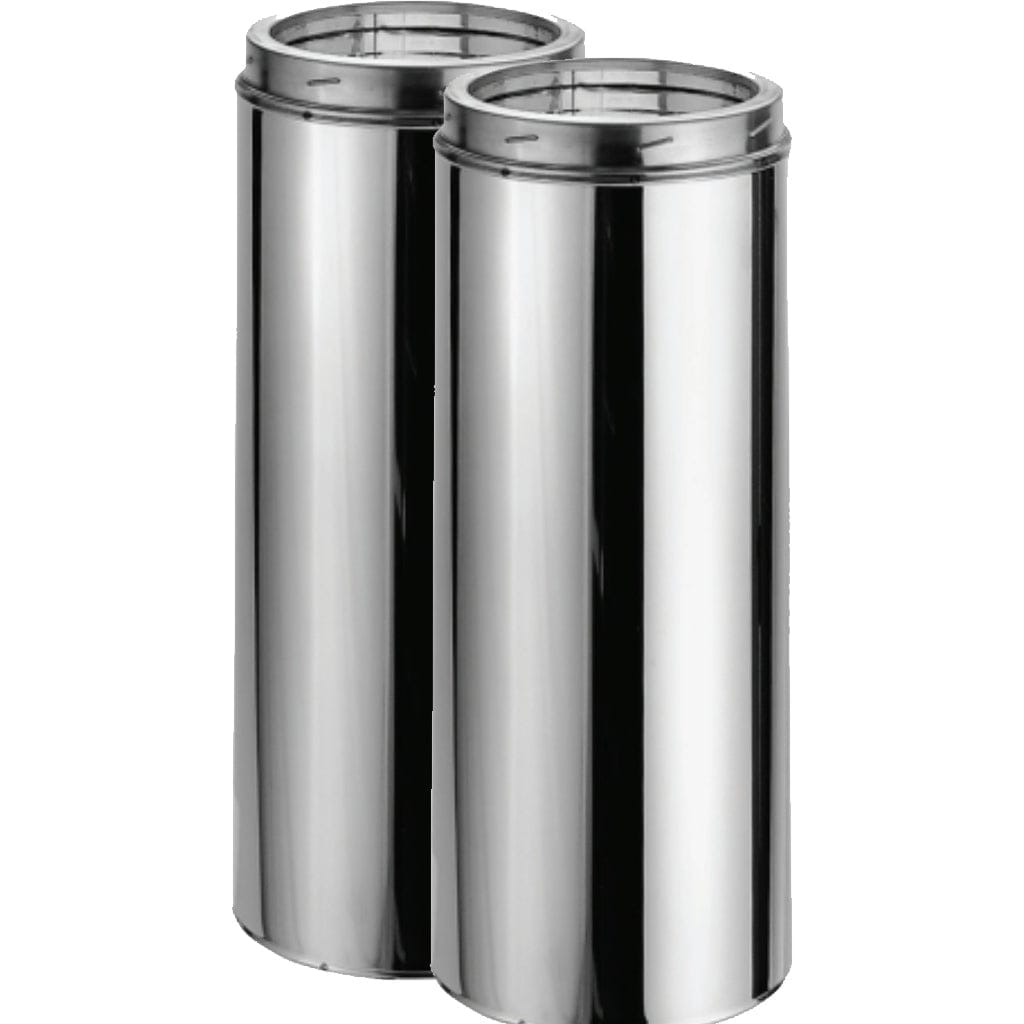

DuraTech Chimney Pipe - 6DT-48
	for use with a 2100°F HT chimney system, such as wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas.

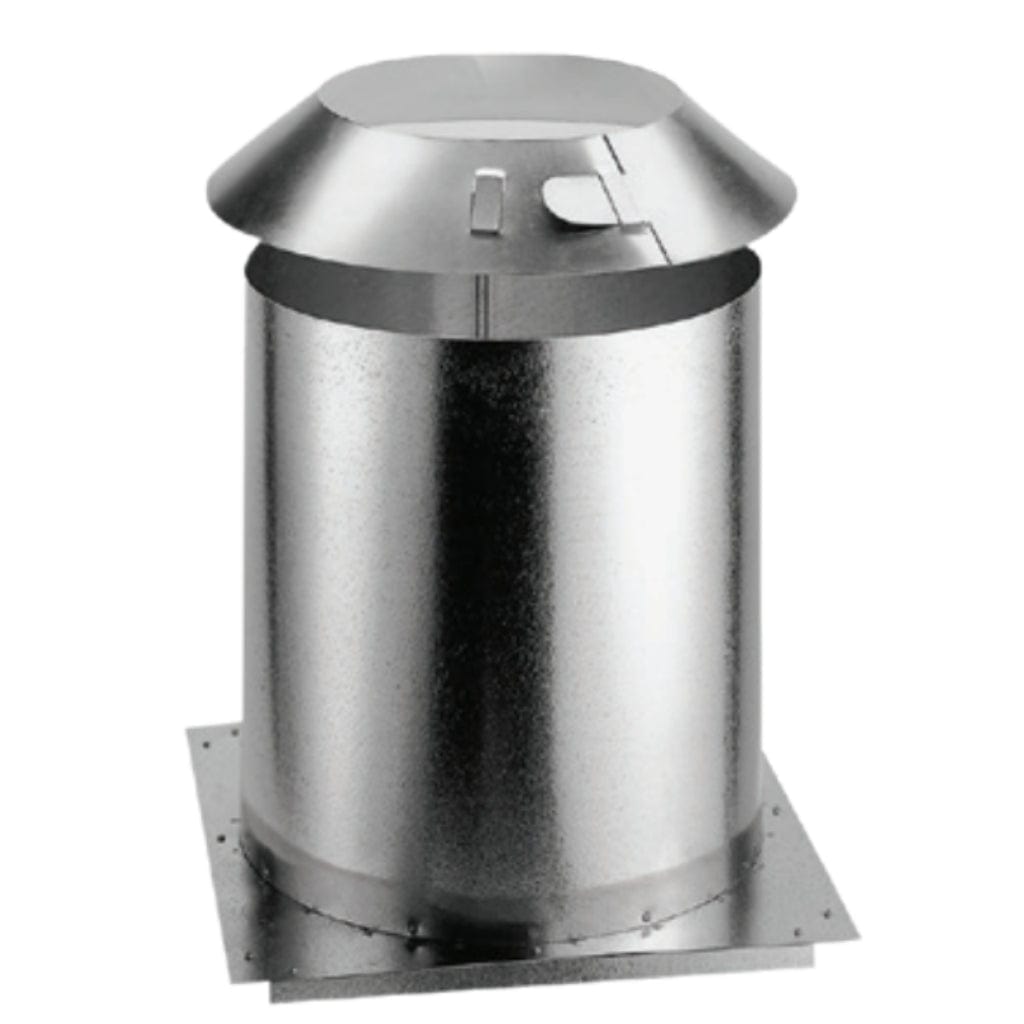

DuraTech Attic Insulation Shield - 6DT-IS
	Required for installations that pass through an attic to prevent insulation and debris from accumulating near the chimney.

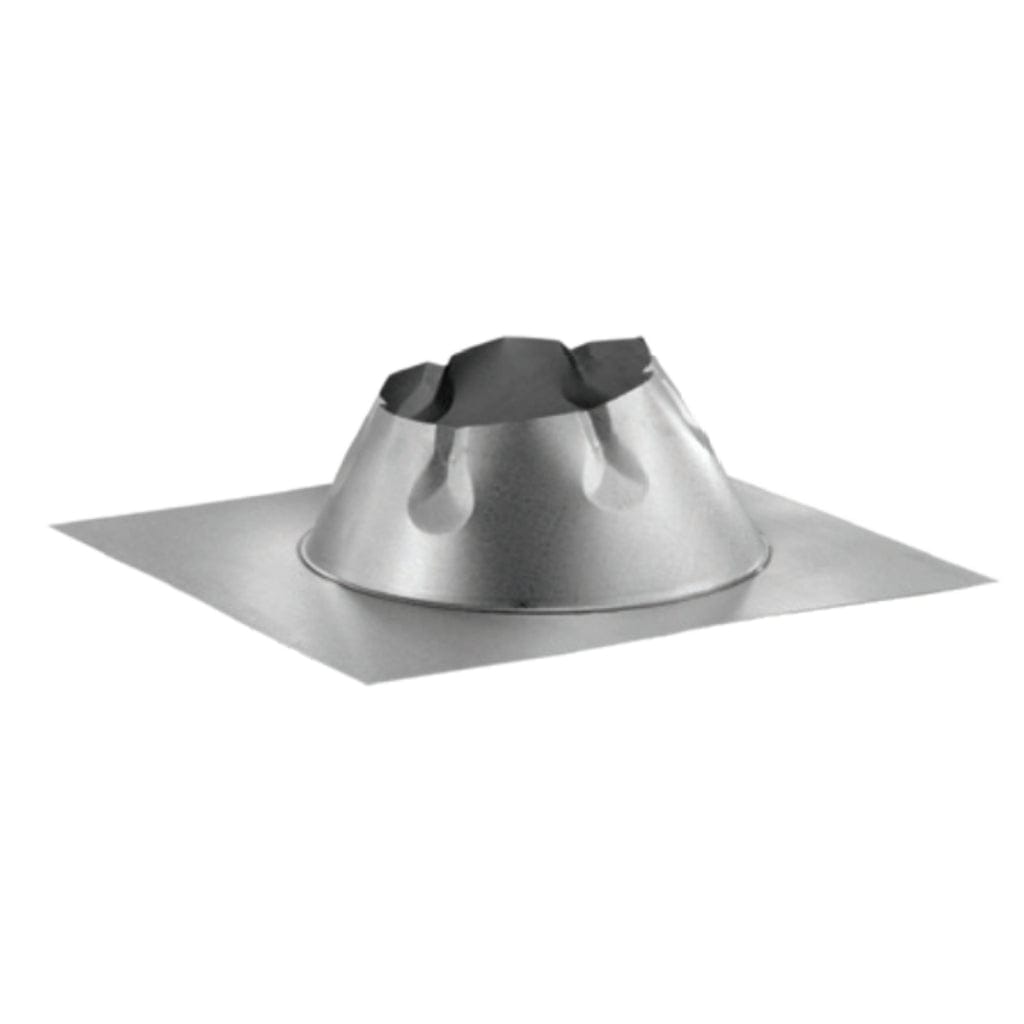

DuraTech Roof Flashing - 6DT-F6
	Use to weatherproof the penetration of chimney pipe through the roof.

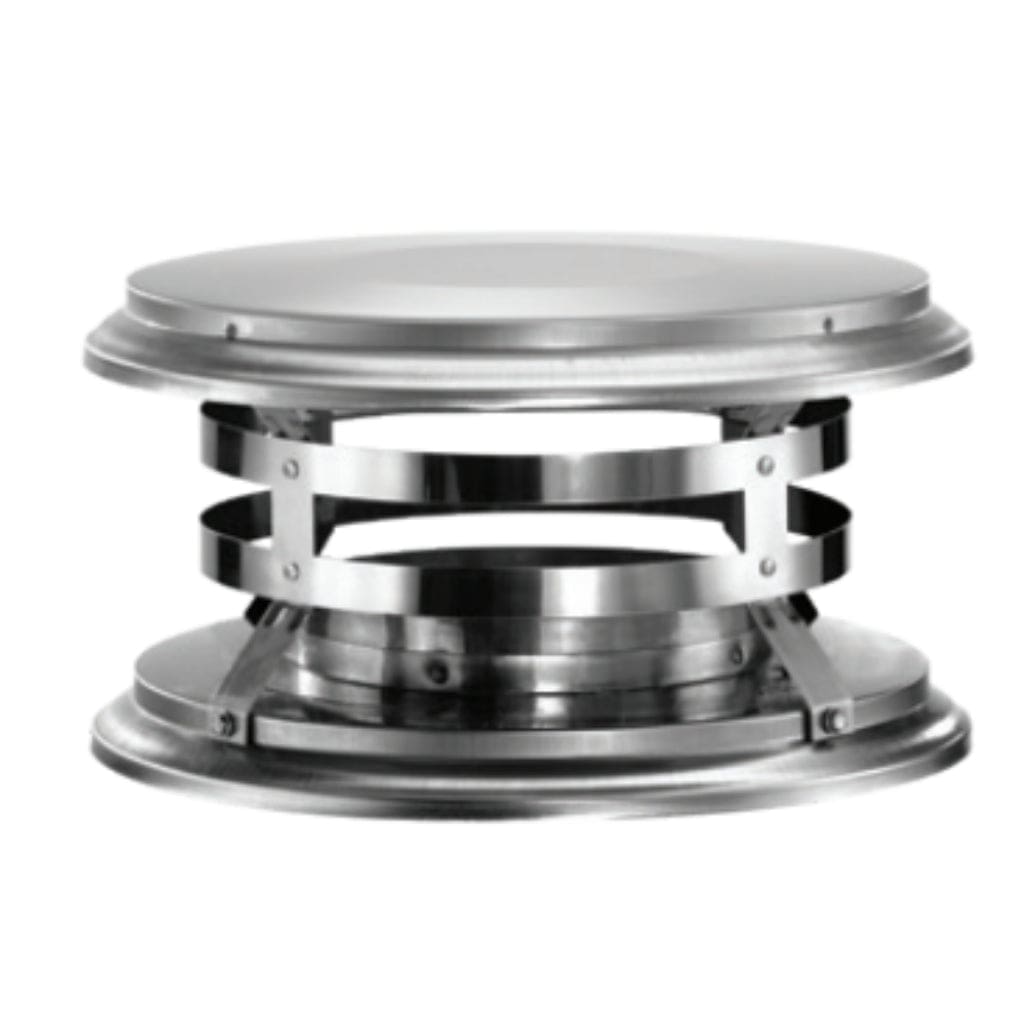

DuraTech Chimney Cap - 6DT-VC
	Required where pipe terminates above the roofline.

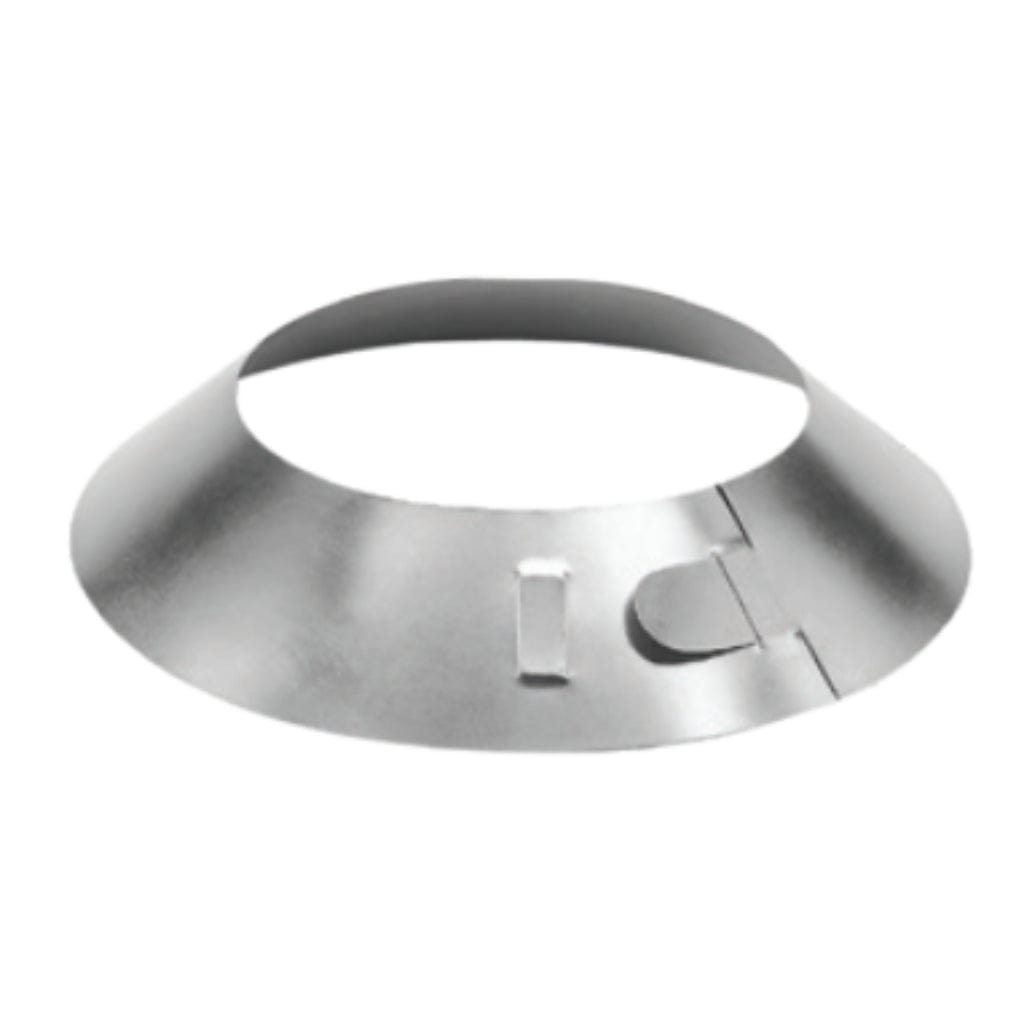

DuraTech Storm Collar - 5DT-SC
	Seal the inner edge of the collar to the chimney pipe with non-hardening 500° F high-temperature sealant.

Specifications

Model	Diameter Size	Dimensions
6DBK-TL	6"	44" x 35" x 9" x 68" x 33"
6DT-RCS	6"	6.25" x 9" x 12"
6DT-48	6"	48" Length
6DT-IS	6"	8" x 14" x 15"
6DT-F6	6"	8.5" x 20" x 27.1875"
6DT-VC	6"	6" x 8" x 11" x 6.5"
5DT-SC	5"-6"	7"-8" x 12"-14"



Typical Installation



Note: For more details regarding our Typical Installations Please refer to our download link below.

Downloads

• DuraBlack Catalog

• DuraBlack Installation Manual
• DuraTech Catalog
• DuraTech Installation Manual
• Typical Installation



Warning: This product can expose you to Chromium, which is known in the state of California to cause cancer, congenital disabilities, or other reproductive harm. For more information, see CA Prop 65 Warning
