6DBK-TL + 6DBK-12 + 6DT-24 + 6DT-48 + 6DT-F6 + 6DT-VC + 6DT-CS24 + 5DT-SC

DuraVent Cathedral Ceiling With Black Single Wall Pipe Wood Stove Chimney Kit

DuraVent Cathedral Ceiling With Black Single Wall Pipe Wood Stove Chimney Kit

$1,452.05
$1,639.57 $1,452.05
Sale Sold out
Shipping calculated at checkout.
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing


Overview

Duravent is a recognized technological leader in the venting industry. Consistently the first to market with new innovations in venting systems with best-in-class design capabilities


Features

  • DuraTech offers optimum safety and performance.
  • DuraTech keeps the outer wall of the chimney cool while ensuring high flue gas temperatures for optimum draft performance.
  • DuraTech inner wall is 25% thicker than competitive chimneys for an extra margin of safety. No locking bands or mechanical fasteners are required.
  • DuraBlack single-wall stovepipe completes the venting system when used with one of DuraVent’s chimney products, such as DuraTech, DuraTech Canada, DuraPlus, or DuraTech Premium.
  • Built to DuraVent’s high standards, DuraBlack is constructed with die-formed end fittings.

Included Items

DuraBlack Pipe Telescoping Length With Trim - 6DBK-TL
Use for a two-piece installation. Connects directly from stove to ceiling support box or finishing collar.
DuraBlack 12" Length Single-Wall Black Pipe - 6DBK-12
Use for a single-wall connector pipe. Requires 18” clearance to combustibles. Subtract 1 1⁄4” from the length to calculate the installed length.
DuraTech Chimney Pipe - 6DT-48 and 6DT-24
for use with a 2100°F HT chimney system, such as wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas.
DuraTech Roof Flashing - 6DT-F6
Use to weatherproof the penetration of chimney pipe through the roof.
DuraTech Chimney Cap - 6DT-VC
Required where pipe terminates above the roofline.
DuraTech 24" Square Ceiling Support Box - 6DT-CS24
Supports the chimney pipe and provides a positive connection between the support box and the chimney with a built-in twist lock. Suitable for both flat and cathedral (A-Frame) ceiling applications.

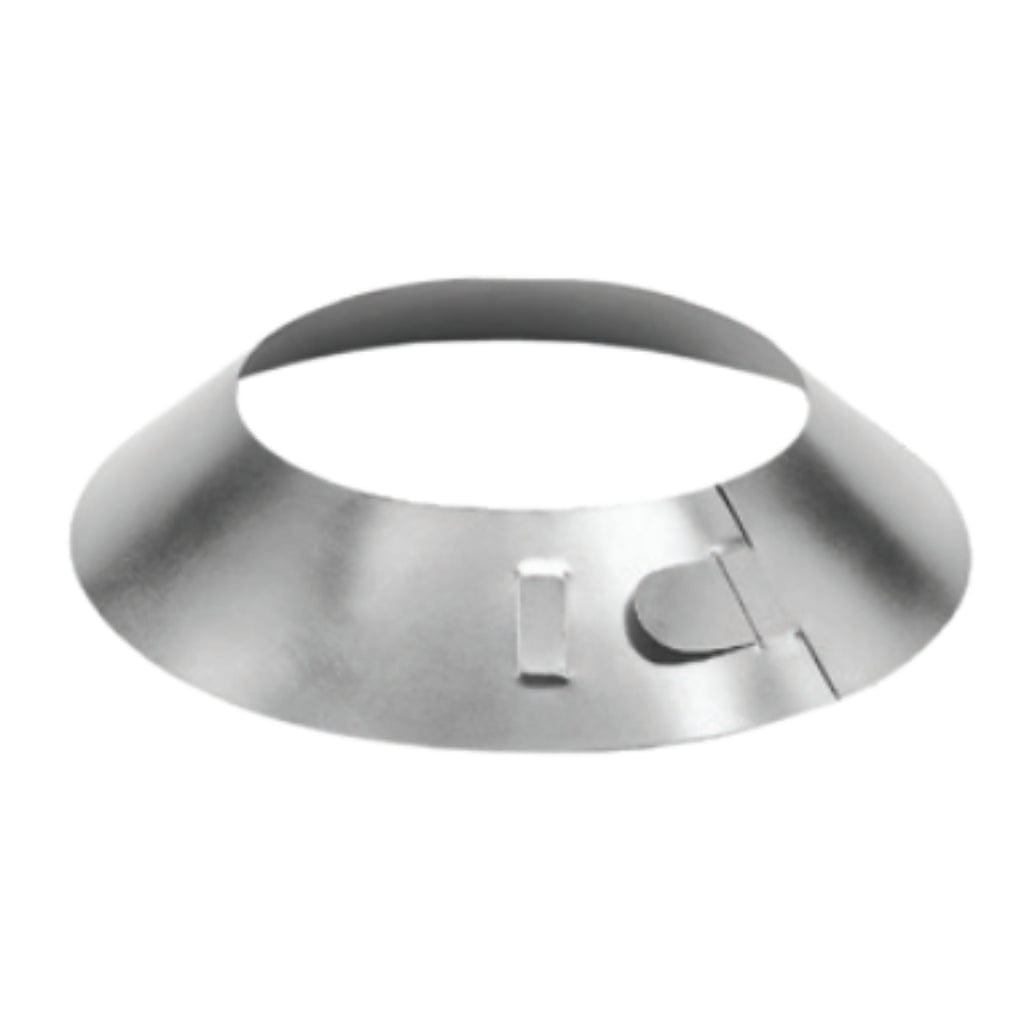

DuraTech Storm Collar - 5DT-SC
Seal the inner edge of the collar to the chimney pipe with non-hardening 500° F high-temperature sealant.

Specifications

Model Diameter Size Dimensions
6DBK-TL 6" 44" x 35" x 9" x 68" x 33"
6DBK-12 6" 12" x 6.125" x 6"
6DT-48 6" 48" Length
6DT-24 6" 24" Length
6DT-F6 6" 9" x 20" x 27.1875"
6DT-CS24 6" 6.25" x 9" x 12"
5DT-SC 5"-6" 7"-8" x 12"-14"



Typical Installation



Note: For more details regarding our Typical Installations Please refer to our download link below.

Downloads



Warning: This product can expose you to Chromium, which is known in the state of California to cause cancer, congenital disabilities, or other reproductive harm. For more information, see CA Prop 65 Warning
