6DVL-68TA + 6DVL-12 + 6DVL-AD + 6DT-CS24 + 6DT-48 + 6DT-24 + 6DT-F6 + 6DT-VC + 5DT-SC

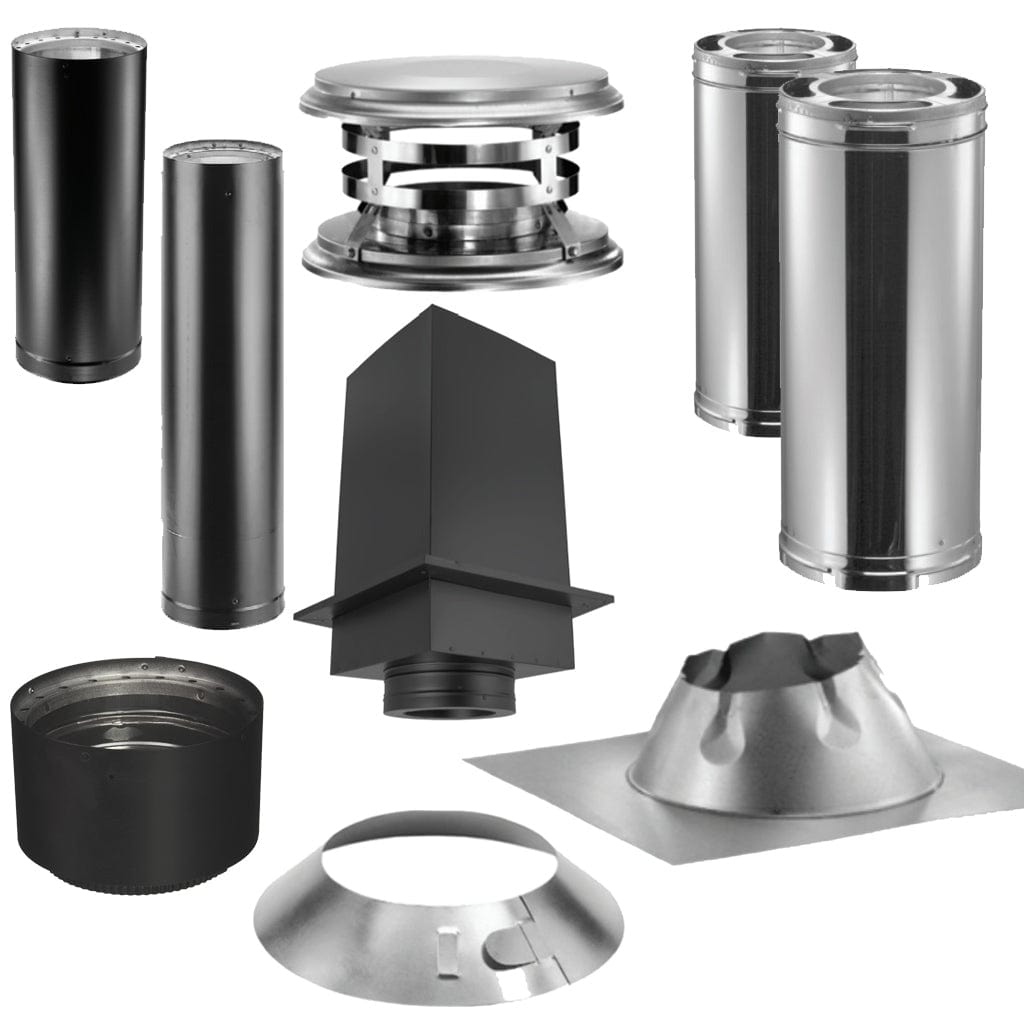

DuraVent Cathedral Ceiling With Black Double Wall Pipe Wood Stove Chimney Kit

DuraVent Cathedral Ceiling With Black Double Wall Pipe Wood Stove Chimney Kit

$1,775.57
$2,043.96 $1,775.57
Sale Sold out
Shipping calculated at checkout.
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing


Overview

Duravent is a recognized technological leader in the venting industry. Consistently the first to market with new innovations in venting systems with best in class design capabilities


Features

  • DuraTech offers optimum safety and performance.
  • DuraTech keeps the outer wall of the chimney cool while ensuring high flue gas temperatures for optimum draft performance.
  • DuraTech inner wall is 25% thicker than competitive chimneys for an extra margin of safety. No locking bands or mechanical fasteners are required.
  • DVL’s double-wall, the air-insulated design reduces clearances to combustibles from 18” to 6”, the closest clearance to a wall of any connector pipe.
  • DVL improves stove performance by maintaining high flue gas temperatures for a strong, steady draft
  • DVL's inner wall is stainless steel the flue heats up faster, stays hot longer, minimizes the formation of creosote, and has the same life expectancy as the chimney.
  • DVL adjustable lengths to eliminate the need for cutting or crimping.

Included Items

DVL Pipe Telescoping Length - 6DVL-68TA
Use for a two-piece installation from stove to ceiling support box or finishing collar.
DVL Double-Wall Black Pipe - 6DVL-12
Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling).
DVL Adapter Section No Damper - 6DVL-AD
Connects DVL pipe to the appliance flue outlet. Use as a stove adapter.

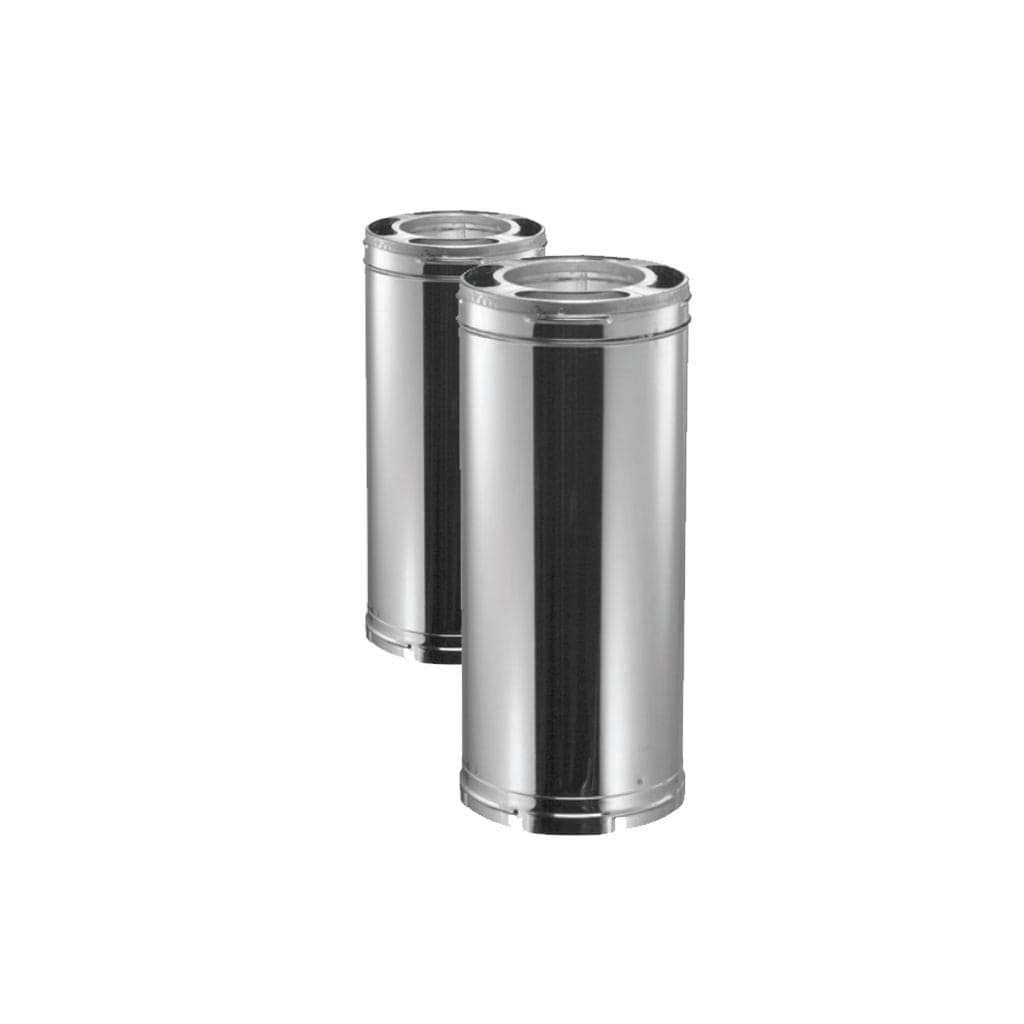

DuraTech Chimney Pipe - 6DT-48 and 6DT-24
for use with a 2100°F HT chimney system, such as wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas.

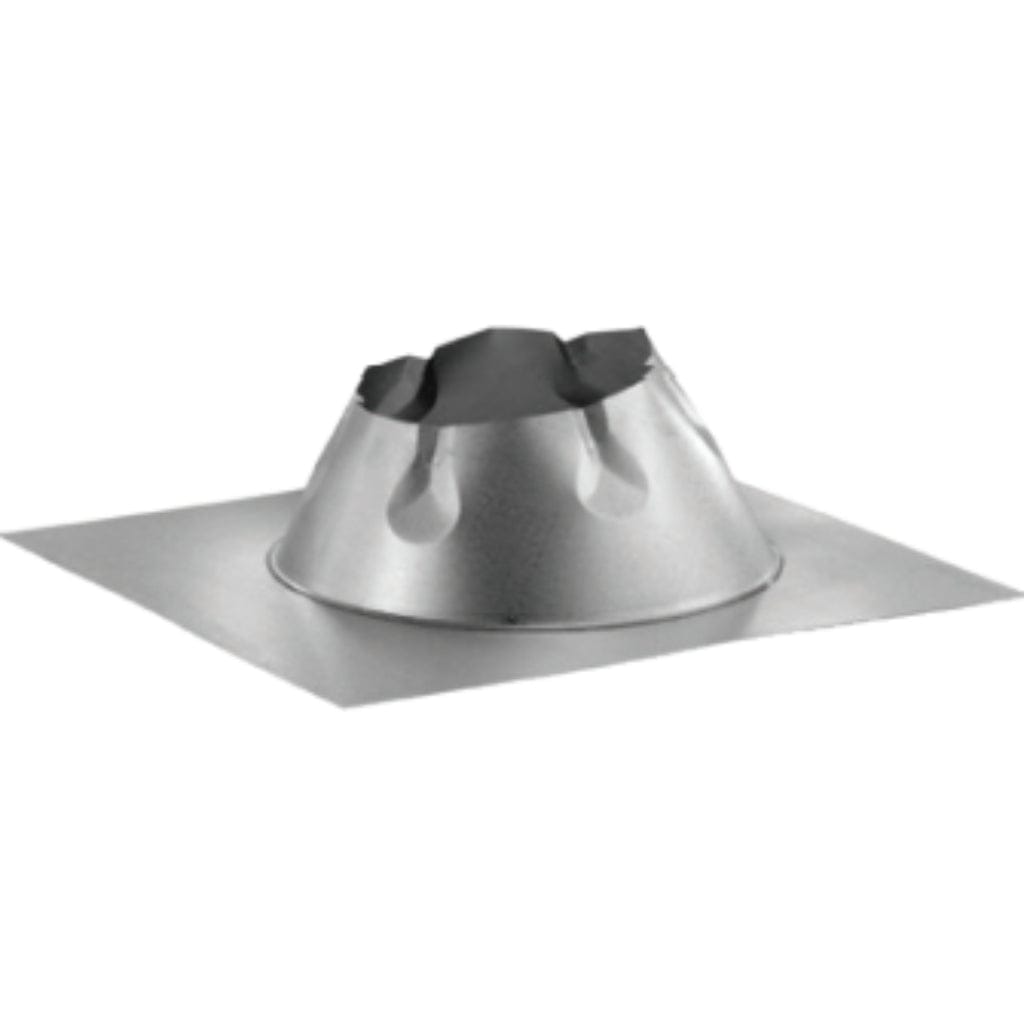

DuraTech Roof Flashing - 6DT-F6
Use to weatherproof the penetration of chimney pipe through the roof.
DuraTech Chimney Cap - 6DT-VC
Required where pipe terminates above the roofline.

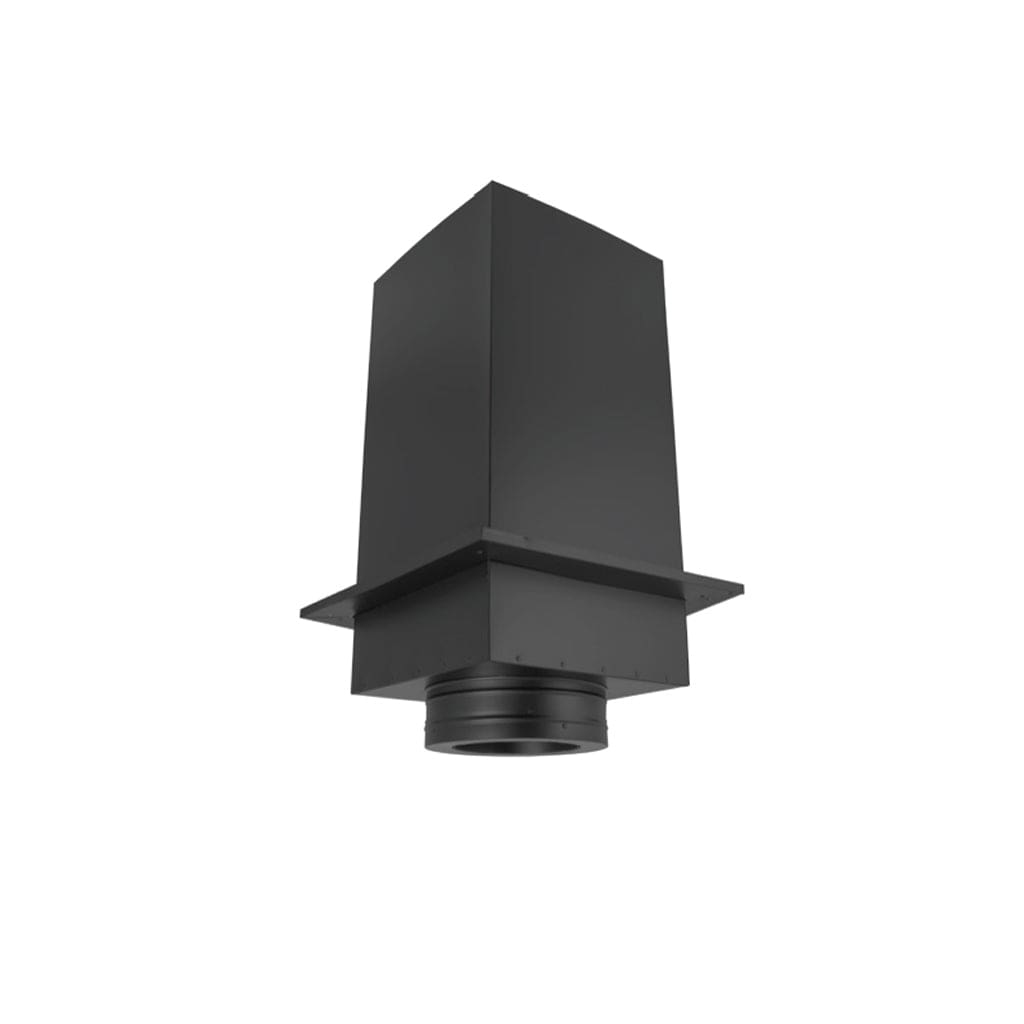

DuraTech 24" Square Ceiling Support Box - 6DT-CS24
Supports chimney pipe and provides a positive connection between support box and chimney with a built-in twist lock. Suitable for both flat and cathedral (A-Frame) ceiling applications.
DuraTech Storm Collar - 5DT-SC
Seal the inner edge of the collar to the chimney pipe with non-hardening 500° F high-temperature sealant.

Specifications

Model Diameter Size Dimensions
6DVL-68TA 6" 7" x 6" x 7.125"
6DVL-12 6" 7" x 6" x 7.125"
6DVL-AD 6" 7" x 5.625"
6DT-48 6" 48" Length
6DT-24 6" 24" Length
6DT-F6 6" 9" x 20" x 27.1875"
6DT-VC 6" 6" x 8" x 11" x 6.5"
6DT-CS24 6" 6.25" x 9" x 12"
5DT-SC 5"-6" 7"-8" x 12"-14"

Typical Installation

Note: For more details regarding our Typical Installations Please refer to our download link below.

Downloads

Warning: This product can expose you to Chromium, which is known in the state of California to cause cancer, congenital disabilities, or other reproductive harm. For more information, see CA Prop 65 Warning
