SKU:F5033

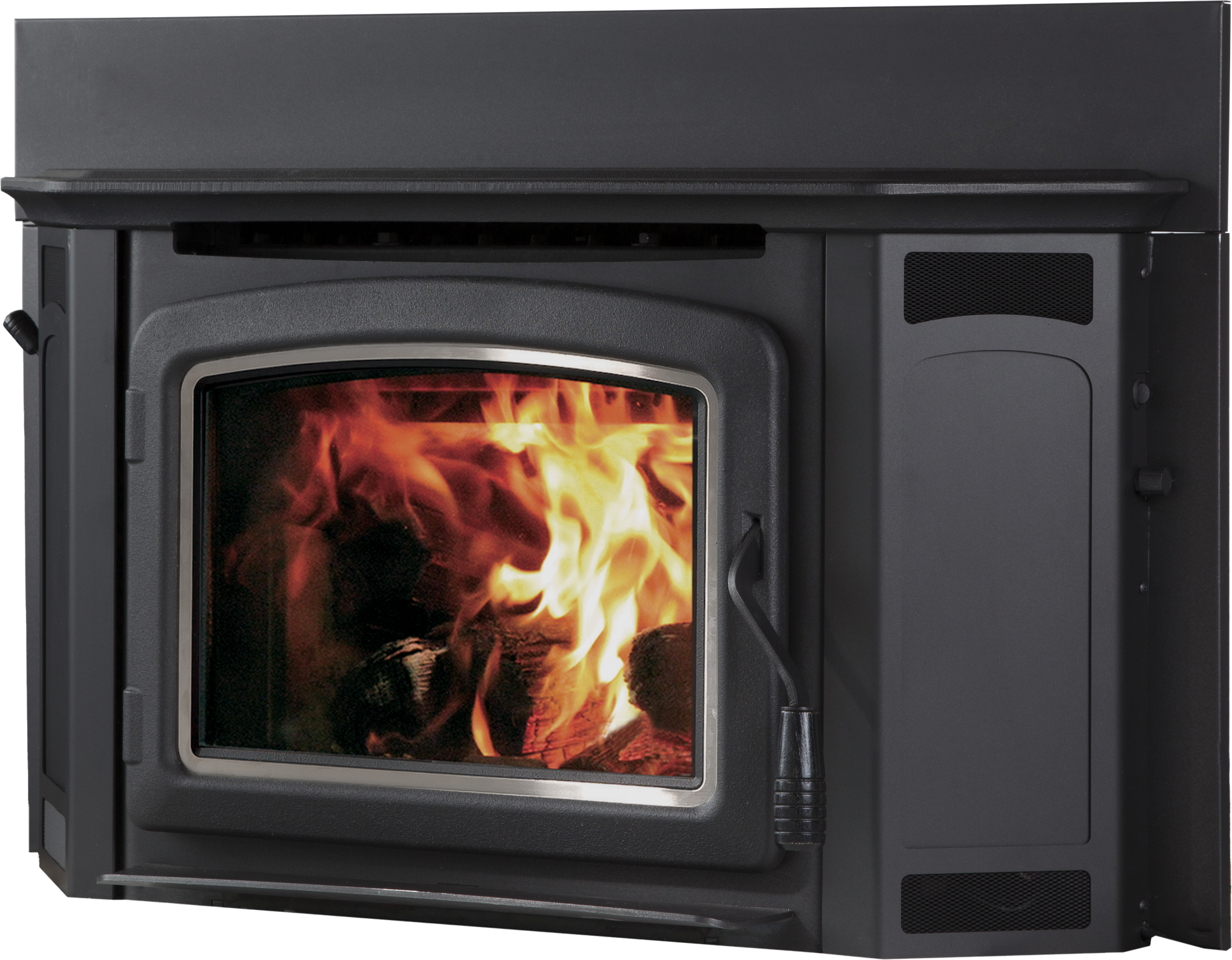

Country Stoves Carrollton 300 GL 38" Wood Insert
Country Stoves Carrollton 300 GL 38" Wood Insert
Top (one Required)
Required Accessories
-- Please Select --
No, Thank You
Surround Panels
Required Accessories
-- Please Select --
No, Thank You
Decorative Trim
Optional Accessories
-- Please Select --
No, Thank You
Raised Hearth Cover Plate
Optional Accessories
-- Please Select --
No, Thank You
Outside Air Kits
Optional Accessories
-- Please Select --
No, Thank You
Couldn't load pickup availability
- Free Shipping on Orders Over $400
- Same-Day Order Processing
The Carrollton 300 GL wood insert offers a more efficient approach to home heating, utilizing our TFT (Thermal Fin Technology) to add more heat to your
home.
What's Included
- 38" Wood Insert
- Air Boost Timer
- Air Wash System
- Interior Brick and Baffle
- Dual 150CFM Blower Included
Not Included (Sold Separately)
- Steel or Cast Iron Top (one required)
- Surround Panels (one required)
- Decorative Trim
- Raised Hearth Cover Plate
- Outside Air Kits
Features
- Thermal Fin heat exchanger creates 32% more surface area than a standard insert design resulting
in more heat entering the room. - Air-boost timer automatically adjusts the air intake control making startup and reloading easier.
- Tall opening provides and expansive view of the burning fire.
- Ceramic glass for extra strength and optimum heat transfer.
- Unique, integral air wash system keeps the glass clean and clear for a wide-open view of the fire.
- Precision-cut, heavy-gauge steel provides dependable, long-lasting operation.
- High-density firebrick retains heat longer, resulting in increased efficiency.
- One-touch control ensures easy operation and comfort.
- Dual 150-CFM variable-speed blowers quickly move heat from the insert into your room.
- Choose from several sizes of surround panel kits to match your opening size (1-required)
- Choose between a steel or cast-iron warming top (1-required).
- Optional decorative door trim in Brushed Nickel or Nickel allow customization to your style.
- EPA-certified and Washington State-approved for clean and efficient operation.
*Square-feet heating capacities are approximations only. Actual performance may vary depending upon home
design and insulation, ceiling heights, climate, condition and type of wood used, appliance location, burn rate,
accessories chosen, chimney installation and how the appliance is operated.
Specifications
| Material Number | F5033 |
| Model Number | 300SI |
| Collection | Lodge |
| Firebox | 3.0 cu. ft. |
| Maximum Burn Time | 8 hours |
| Efficiency | 80 |
| Heating Capacity | 2000 - 3000 sq. ft. |
| Maximum BTU | 100,000 per hour |
| Log Length | 21" Log - North to South Loading |
| Emission Rate GPH | 1.8GPH |
| Vent Type | Vented |
| Vent Size | 6" |
| Fireplace Style | Wood Burning Insert |
| Color | Black |
| Weight | 436 lbs |
Product Dimensions
| Front Width | 38-1/8" |
| Rear Width (Rear Taper Width) |
27-14" (25-1/4") |
| Front Height | 23" |
| Rear Height | 22-5/8" |
| Depth into Fireplace | 15-1/4" |
| Flue Diameter ** | 6" |
| X = Depth onto Hearth | 10-5/8" |
| Approximate Weight | 428 lbs. |
** Consult your dealer or professional installer for recommended chimney sizes for your application. C260 and C310 require 6”reducer for use with 6” chimney.
* Leveling nuts extend outside this dimension.
Technical Drawings & Dimensions
|
| A = Insert Top to Combustible Mantel |
26"(US/CN) |
| B = Insert Top to Top Facing |
24"(US/CN) |
| C = Insert Side to Side Wall | 8" |
| D = Insert Side to Side Facing | 8" |
| E = Hearth in Front of Insert † | 18" |
| G = Minimum Mantel Height from Bottom of Insert |
48-3/4" |
| H = Hearth Side to Door Opening | 8" (US/CN) |
† In some cases the hearth depth in front of inset by 2" for every 2" the hearth is raised. Check the owners manual for details.
|
| Surround Size | 29"H x 42-1/2"W |
| 29"H x 49-1/2"W | |
| 33"H x 42-1/2"W | |
| 33"H x 49-1/2"W | |
| Able to be Trimmed | 34"H x 50”W |
|
| Masonry Fireplace | ZC Fireplace | |
| I=Minimum Depth | 16-1/2" | 16-1/2" |
| J=Minimum Height | 23-1/2" | 23-1/2" |
| K=Minimum Width | 29-1/2" | 36" |
| L=Minimum Rear Width | 27-1/4" | 27-1/4" |
| M=Maximum Lintel Depth | 5-3/8" | 5-3/8" |
Warranty
 |
Limited Lifetime Warranty |
